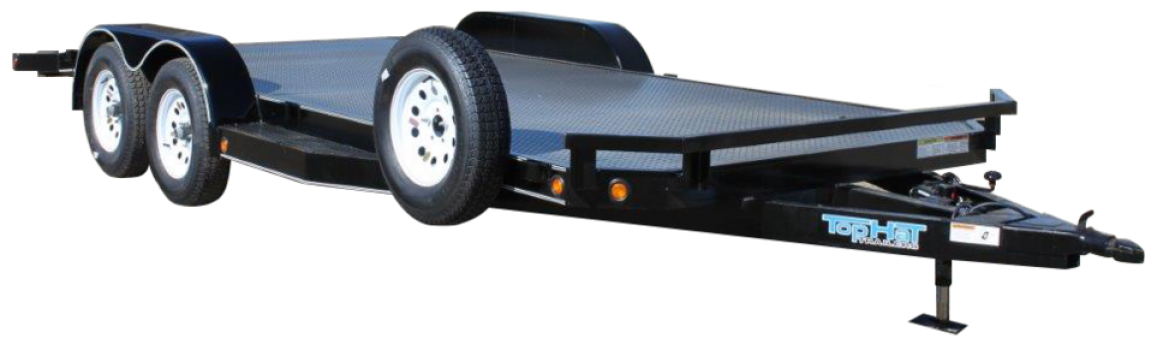

ALL STEEL CAR HAULER



Model Axle Description Tire Size GAWR GVWR
ALL STEEL CAR HAULER
16x83" ASCH 2 - 3500# Dexter ST205/15 LRC Radial 3500# 7000#
18x83" ASCH 1 - Electric Brake Nev-R-Adjust
20x83" ASCH EZ Lube - 1/2 Cambered
22x83" ASCH
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Fold Up
  • Fenders: 9x72 Rolled Teardrop
  • Floor: Diamond Plate Steel
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • Flush Floor
  • 2' Dovetail
  • Non Removable Rear Slide-N-Ramps
  • Side Steps
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Wiring Harness
  • 4 D-Rings In Floor
  • Colors: Refer to Chart
  • Frame: 5" Channel
  • Front Bump Rail: 2" Square Tube
  • Crossmembers: 3x2x3/16
  • Tongue: 5" Channel Wrap
  • 45 Degree Front Corners
  • Floor to Fender Ht. 10"
  • Electric Brake
  • 2 5/16 Atwood Coupler
  • 2 5/16 RAM Coupler
  • Spare ST205/15 LRC on 5-Hole Radial
  • 7000# Jack
  • Rounded Diamond Plate TD Fender
  • HD Diamond Plate Straight
  • Removable Fenders
  • Delete or Change Length of Dovetail
  • Split Dovetail
  • Extra Flush Mount Tie Rings In Floor
  • Toolbox/Spare Holder In Floor
  • Racer Toolbox On Front
  • Steel Rock Shield
  • Aluminum Fenders
  • Chrome Package
  • Deluxe Chrome Package
  • Warn 8K Winch w/Winch Plate Built Into Floor
  • Gooseneck w/8" Channel Neck & 4" Channel Truss
  • Other Options Available
