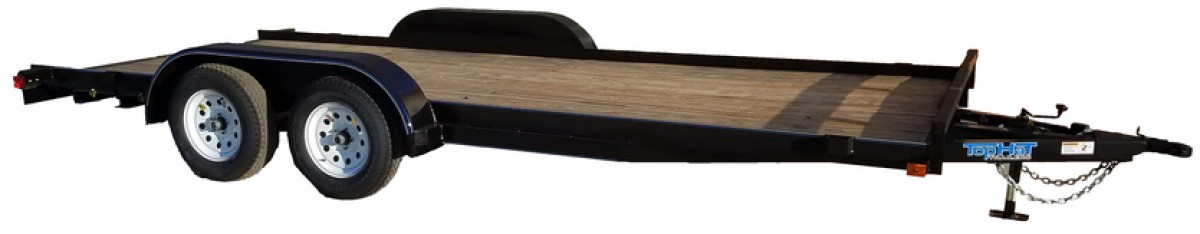

CAR HAULER



Model Axle Description Tire Size GAWR GVWR
CAR HAULER
12x83" CH 2 - 3500# Dexter ST205/15 LRC Radial 3500# 7000#
14x83" CH 1 - Electric Brake Nev-R-Adjust   With "Delete Brake" Option
16x83" CH EZ Lube - 1/2 Cambered   2950# 4490#
18x83" CH
20x83" CH
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Fold Up
  • Fenders: 9x72 Rolled Straight
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • Spare Rack
  • LED Lights
  • Colors: Refer to Chart
  • Frame: 5x3x1/4
  • Crossmembers: 3x2x3/16
  • Tongue: 5" Channel Wrap
  • Floor to Fender Ht. 13.5"
  • Front Bump Rail: 2" Square Tube
  • Delete Brake Axle
  • Electric Brake (2nd Axle)
  • Flush Mount LED Lights
  • 7000# Jack
  • Teardrop Fenders
  • Rounded Diamond Plate TD Fender
  • HD Diamond Plate Straight
  • Removable Fenders (Per Side)
  • Medium A-Frame Toolbox on Tongue  (Fold-Up Jack NA w/Toolbox. Jack Put Thru Coupler at NC.)
  • Spare ST205/15 LRC on 5-Hole Radial
  • 2' Dovetail (Wood)
  • 2' Dovetail (Treadplate. Must Purchase Flush Floor.)
  • Flush Floor (Floor to Fender Ht. 10")
  • 4' Slide-N-Ramps
  • 5' Slide-N-Ramps (NA on 12' & 14')
  • 6' Slide-N-Ramps (NA on 12' & 14')
  • Other Options Available
