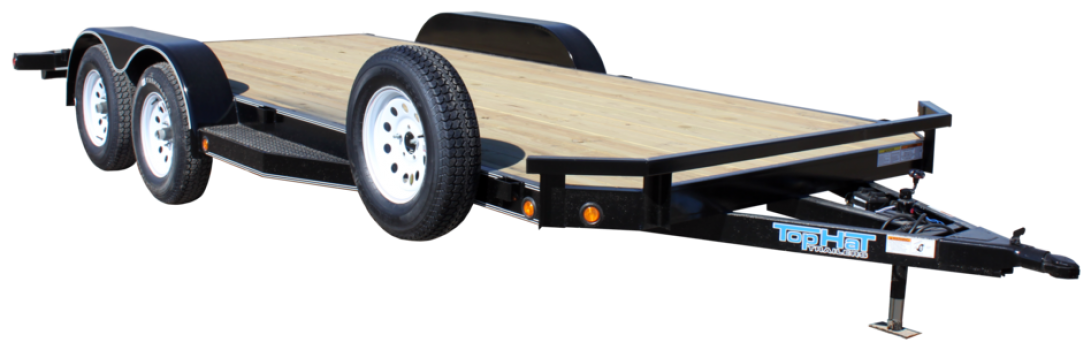

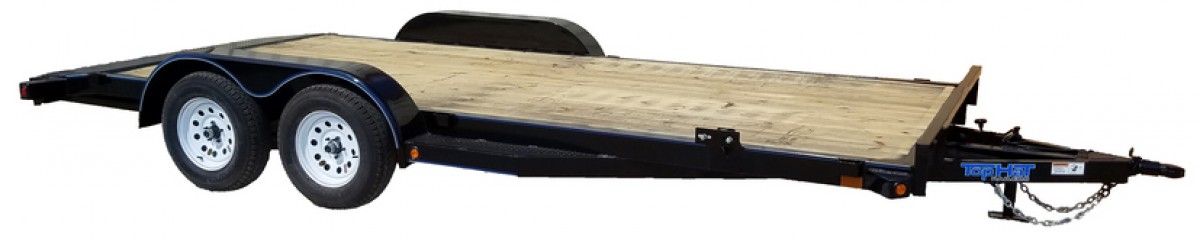

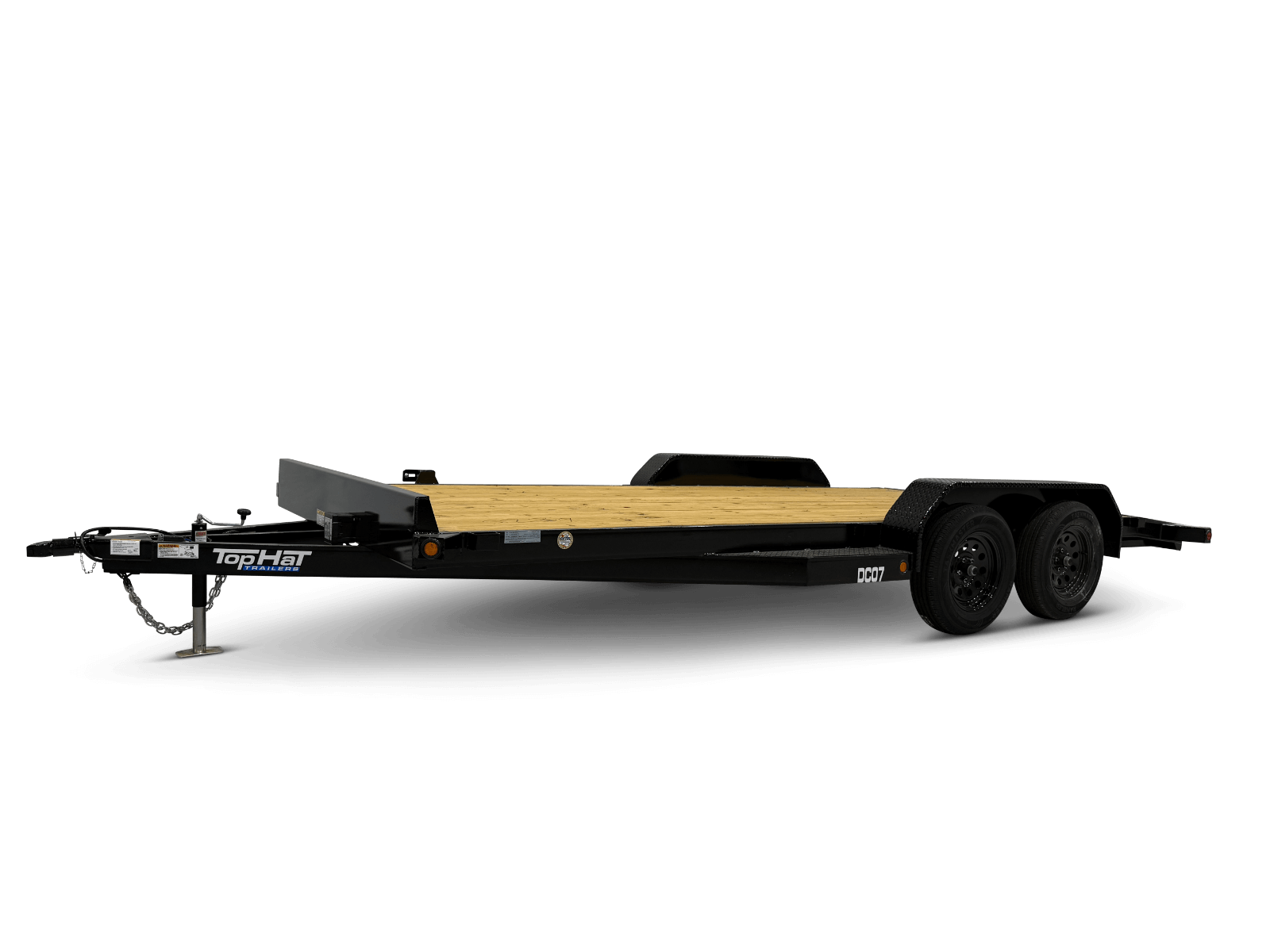

DELUXE CAR HAULER



Model Axle Description Tire Size GAWR GVWR
DELUXE CAR HAULER
16x83" DCH 2 - 3500# Dexter ST205/15 LRC Radial 3500# 7000#
18x83" DCH 1 - Electric Brake Nev-R-Adjust
20x83" DCH EZ Lube - 1/2 Cambered
22x83" DCH
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Fold Up
  • Fenders: 9x72 Rolled Teardrop
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • Flush Floor
  • 2' Treadplate Dovetail
  • Rear Slide-N-Ramps (4 1/2' on 16', 5' on 18-22')
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Wiring Harness
  • Side Steps
  • Colors: Refer to Chart
  • Frame: 5" Channel Thru 20'
  • Frame: 6" Channel on 22'
  • Front Bump Rail: 2" Square Tube
  • Crossmembers: 3x2x3/16
  • Tongue: 5" Channel Wrap
  • Floor to Fender Ht. 10"
  • Electric Brake (2nd Axle)
  • 2 5/16" Atwood Coupler
  • 2 5/16" RAM Coupler
  • Spare ST205/15 LRC on 5-Hole Radial
  • Change Length of Treadplate Dovetail to 3' or 4'
  • Rounded Diamond Plate TD Fender
  • HD Diamond Plate Straight
  • Removable Fenders (Per Side)
  • Medium A-Frame Toolbox on Tongue  (Fold-Up Jack NA w/Toolbox. Jack Put Thru Coupler at NC.)
  • 45 Degree Front Corners
  • Chrome Package (Aluminum on Steps & Fenders)
  • Gooseneck w/8" Channel Neck & 4" Channel Truss
  • Other Options Available
