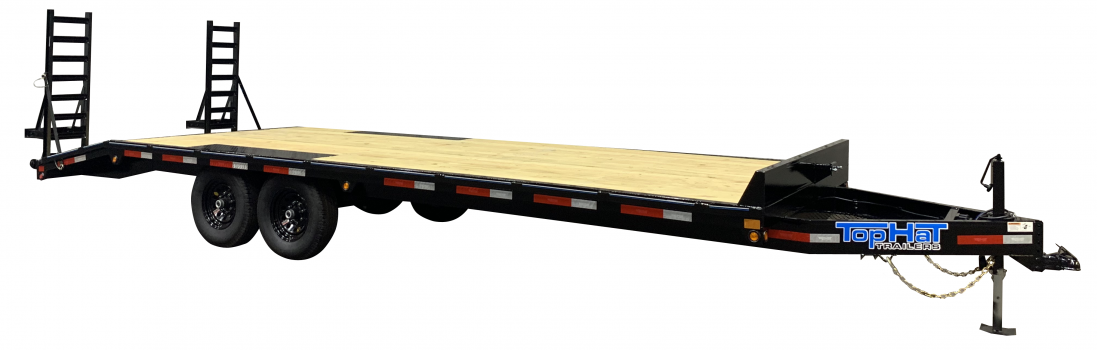

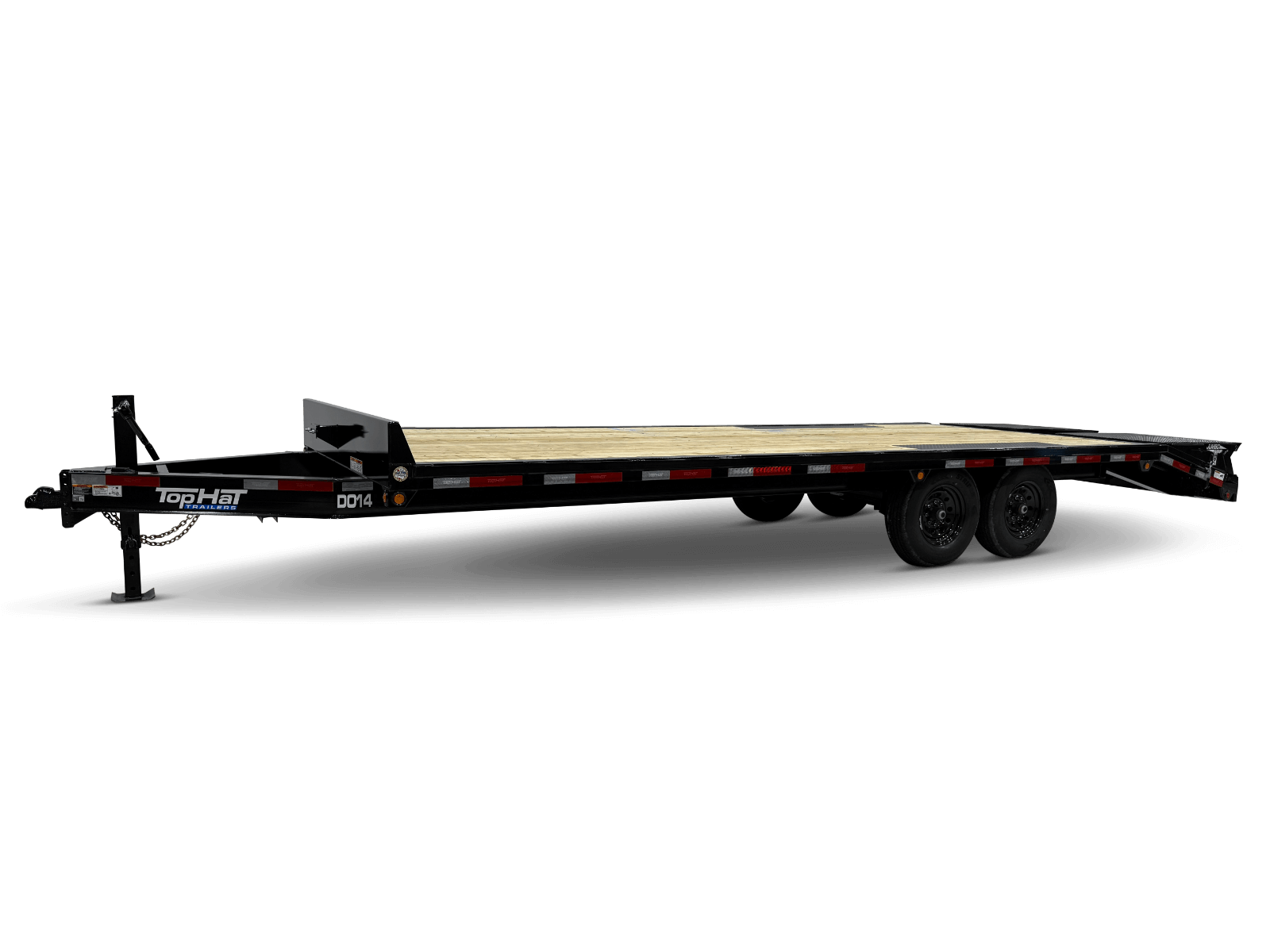

DECK OVER 10K-14K-16K
Model
Axle Description
Tire Size
GAWR
GVWR
DECK OVER 10K
16x96" DO 10K
2 - 5200#
Dexter
ST225/75R/15 LRD
5080#
9990#
18x96" DO 10K
2 - Electric Brakes
Nev-R-Adjust
20x96" DO 10K
E-Z Lube - 1/2 Cambered
22x96" DO 10K
24x96" DO 10K
DECK OVER 14K
16x96" DO 14K
2 - 7000#
Dexter
ST235/80R/16 LRE
7000#
14000#
18x96" DO 14K
2 - Electric Brakes
Nev-R-Adjust
20x96" DO 14K
E-Z Lube - 1/2 Cambered
22x96" DO 14K
24x96" DO 14K
DECK OVER 16K
16x102" DO 16K
8000#
17500#
18x102" DO 16K
20x102" DO 16K
22x102" DO 16K
24x102" DO 16K
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 7000# Drop Leg on 10K. 10000# Drop Leg on 14-16K.
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/Charger
Spare Rack
Standard Color: Black
Frame Structure
Frame/Tongue Integrated 8" Channel
Crossmembers: 3" Channel 16" OC
Side Rails: 5x3x1/4
Stake Pockets & Rubrail
Deck Height: 30" on 10K w/225 Tires
Deck Height: 32" on 14K
Options
10K Drop Leg Jack
Adjustable Pintle Eye
102" Wide
(Priced Per Ft)
6' Slide-N-Ramps
(3" Channel Frame)
4' Dovetail w/4' Slide-N-Ramps
4' Dovetail w/5' Slide-N-Ramps
4' Dovetail w/6' Slide-N-Ramps
4' Dovetail w/4' Fold Up Ramps
4' Dovetail w/5' Fold Up Ramps
4' Dovetail w/6' Fold Up Ramps
Spring Assist on Fold Up Ramps
4' Dovetail w/5' Tailgate w/Spring Assist
235/80R/16 LRE Tire Upgrade
(10K Only. Priced Per Tire.)
Spare ST225/15 Radial LRD on 6-Hole
Spare ST235/80R/16 LRE on 8-Hole
Other Options Available
Note: Optional Dovetail Does Not Add to Length of Trailer.
Note: Fold Up Ramps Do Not Have Knees.
(Spring Assist NA on Fold Up Ramps.)
