Top Hat Trailers

GOOSENECK 240 LO PROFILE

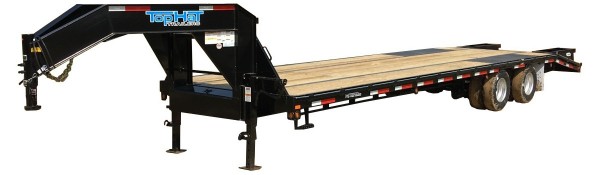

main product image
Model Axle Description Tire Size GAWR GVWR
GOOSENECK 240 LO PROFILE
20x102" GN 240 2 - 10000# Dexter ST235/80R/16 LRE 10000# 24000#
24x102" GN 240 2 - Electric Brakes Nev-R-Adjust
28x102" GN 240 Oil Bath - 8 Lug
32x102" GN 240
36x102" GN 240
40x102" GN 240

20+5x102" GN 240
25+5x102" GN 240
27+5x102" GN 240
30+5x102" GN 240
35+5x102" GN 240
  • Coupler: 2 5/16" Round Adjustable
  • Jack: Dual 10000# Drop Leg
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Spare Tire Rack Inside Neck
  • Lockable Toolbox Between Risers
  • Winch Plate Between Risers
  • Wiring Harness w/Sealed LED Lights
  • Driver & Curb Side Steps w/Grab Handles
  • DOT Reflective Tape
  • 5 Leaf Slipper Spring Suspension
  • Color: Black
  • Frame: 12"x16# I-Beam, 19# on 32' & Longer
  • Neck: 12"x16# I-Beam
  • Crossmembers: 3" Channel 16" OC Thru Frame
  • Side Rails: 6" Channel
  • 3/8x2 Flat Rubrail
  • Stake Pockets 24" OC
  • Pipe Spools Between Each Stake Pocket
  • Frame to Crossmember Gussets
  • Anti Flex Torx Tube on 32' & Longer
  • Low Profile
  • Dovetail w/Fold Over Spring Assist Ramps on +5 Models
  • Deck Height: 34.5"
  • Spare ST235/80R/16 LRE on Dual
  • Upgrade to ST235/85R/16 LRG on Dual
  • Upgrade to 215/75R/17.5 LRH on Dual
  • Single Wheel w/235/75R/17.5 LRJ Tire
  • Jumbo Ramps
  • 3rd Ramp on Dovetail
  • HD Dozer Dovetail
  • 7 1/2' Slide-N-Ramps
  • Dual 2-Speed Jacks
  • Dual Hydraulic Jack 12K Replacing Dual 12K Drop Leg Jack
  • Deck Over Gooseneck
  • 1" D-Rings
  • Underbody Toolbox
  • 2 - 10K Electric/Hydraulic Brakes w/Drum
  • Dexter HD Adjustable Suspension
  • Replace Slipper Spring Suspension w/Torsion
  • Bridge Support Truss
  • Other Options Available
