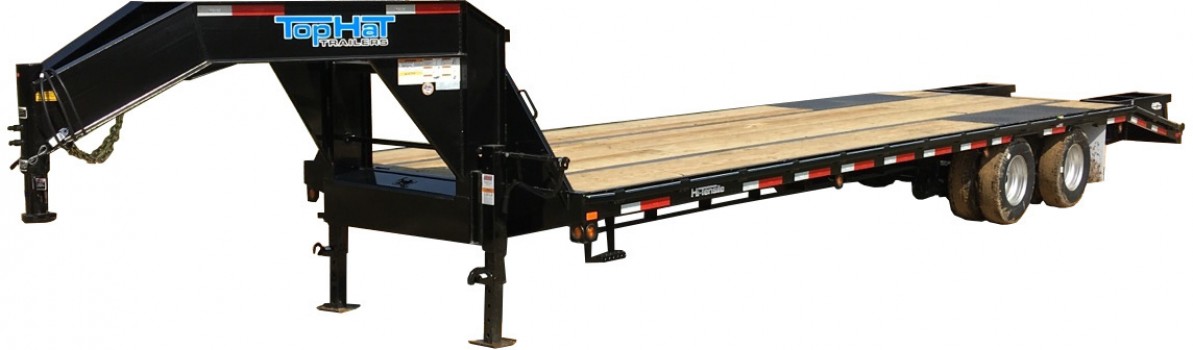

GOOSENECK 259 LO PROFILE HEAVY DUTY



Model Axle Description Tire Size GAWR GVWR
GOOSENECK 259 LO PROFILE HEAVY DUTY
20x102" GN 259 2 - 12000# Dexter ST235/80R/16 LRE 12000# 25900#
24x102" GN 259 2 - Electric Brakes Nev-R-Adjust
28x102" GN 259 Oil Bath - 8 Lug
32x102" GN 259
36x102" GN 259
40x102" GN 259

20+5x102" GN 259
25+5x102" GN 259
27+5x102" GN 259
30+5x102" GN 259
35+5x102" GN 259
  • Coupler: 2 5/16" Round Adjustable
  • Jack: Dual 10000# Drop Leg
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger

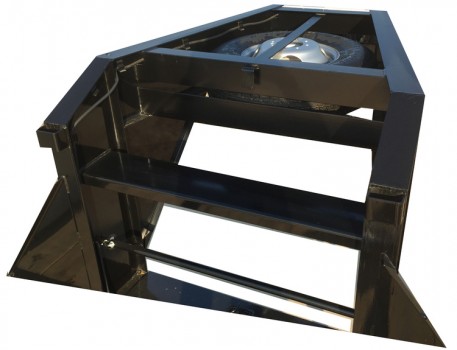

  • Spare Tire Rack Inside Neck (Spare Tire Optional)
  • Lockable Toolbox Between Risers
  • Winch Plate Between Risers
  • Wiring Harness w/Sealed LED Lights
  • Driver & Curb Side Steps w/Grab Handles
  • DOT Reflective Tape

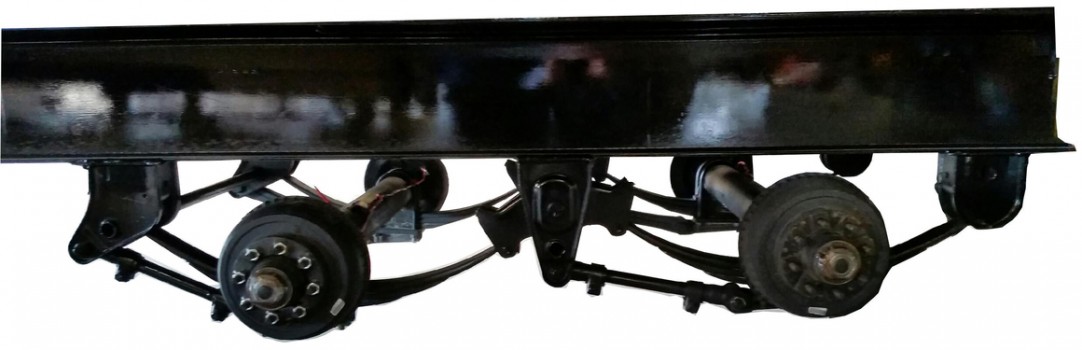

  • Dexter HD Adjustable Suspension
  • Color: Black
  • Frame: 12"x19# I-Beam
  • Neck: 12"x19# I-Beam
  • Crossmembers: 3" Channel 16" OC Thru Frame
  • Side Rails: 6" Channel
  • 3/8x2 Flat Rubrail
  • Stake Pockets 24" OC
  • Pipe Spools Between Each Stake Pocket
  • Frame to Crossmember Gussets
  • Anti Flex Torx Tube on 32' & Longer
  • Bridge Support Truss on 32' & Longer
  • Low Profile  (Crossmembers Thru Frame)

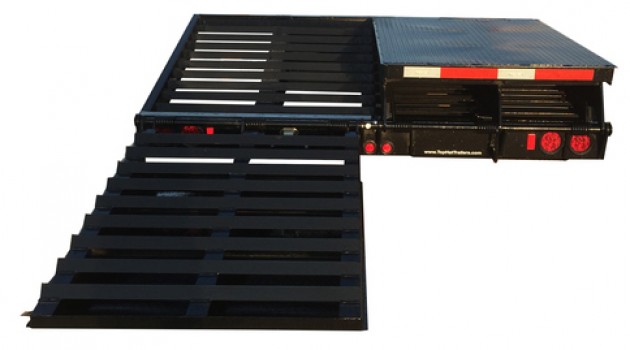

  • Dovetail w/Fold Over Spring Assist Ramps on +5 Models
  • Deck Height: 34.5"
  • Spare ST235/80R/16 LRE on Dual
  • Upgrade to ST235/85R/16 LRG on Dual
  • Upgrade to 215/75R/17.5 LRH on Dual

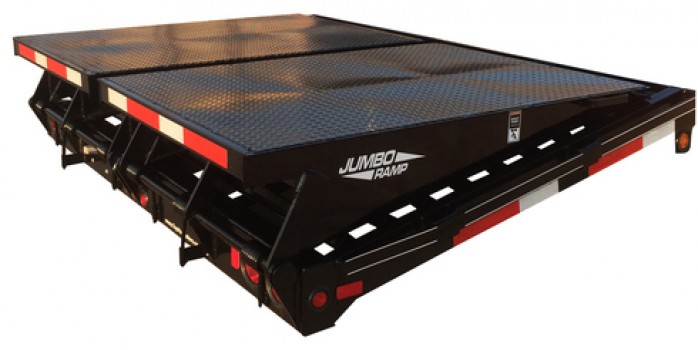

  • Jumbo Ramps
  • Combo Dovetail (Ramps covered w/Diamond Plate on Bottoms and Pop-Up Center. Dovetail Level w/Deck.)
  • 3rd Ramp on Dovetail
  • HD Dozer Dovetail
  • 7 1/2' Slide-N-Ramps (Straight Deck Only)
  • Dual 2-Speed Jacks
  • Dual Hydraulic Jack 12K Replacing Dual 12K Drop Leg Jack
  • Deck Over Gooseneck (8'x8')
  • 1" D-Rings (Priced Per Ring)
  • Underbody Toolbox (Ask about size options.)
  • 2 - 12K Electric/Hydraulic Brakes w/Drum (Includes Elecdrolic 1600 PSI Pump Kit)
  • 2 - 12K Electric/Hydraulic Brakes w/Disc (Includes Elecdrolic 1600 PSI Pump Kit)
  • 2 - 12K HD Air Brakes w/ABS
  • Air Ride Suspension  (Will Require Compressor Kit Below if Air NA on Tow Vehicle.)
  • Air Ride Compressor Kit
  • Other Options Available
