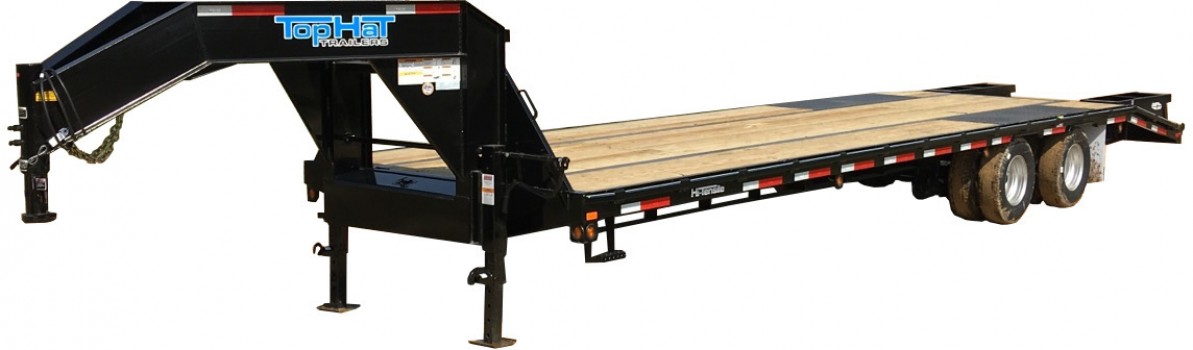

GOOSENECK 300 LO PROFILE SUPER DUTY



Model Axle Description Tire Size GAWR GVWR
GOOSENECK 300 LO PROFILE SUPER DUTY
20x102" GN 300 2 - 15000# Dexter 215/75R/17.5 LRH 15000# 30000#
24x102" GN 300 2 - Electric Brakes Nev-R-Adjust 10 - Hole
28x102" GN 300 Oil Bath - 10 Lug
32x102" GN 300
36x102" GN 300   NOTICE: TRAILER IS SUBJECT TO FEDERAL EXCISE TAX.
40x102" GN 300

20+5x102" GN 300
25+5x102" GN 300
27+5x102" GN 300
30+5x102" GN 300
35+5x102" GN 300

  • Coupler: 2 5/16" Round Adjustable
  • Jack: Dual 2-Speed
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Spare Tire Rack Inside Neck (Spare Tire Optional)
  • Lockable Toolbox Between Risers
  • Winch Plate Between Risers
  • 1" D-Rings (4)
  • Wiring Harness w/Sealed LED Lights
  • Driver & Curb Side Steps w/Grab Handles
  • DOT Reflective Tape
  • Dexter HD Adjustable Suspension
  • Color: Black
  • Frame: 12"x22# I-Beam
  • Neck: 12"x19# I-Beam
  • Crossmembers: 4" Channel 16" OC Thru Frame
  • Side Rails: 8" Channel
  • 3/8x2 Flat Rubrail
  • Stake Pockets 24" OC
  • Pipe Spools Between Each Stake Pocket
  • Frame to Crossmember Gussets
  • Anti Flex Torx Tube on 32' & Longer
  • Bridge Support Truss on 32' & Longer
  • Low Profile (Crossmembers Thru Frame)
  • Dozer Dovetail w/Fold Over Spring Assist Ramps on +5 Models
  • Deck Height: 34.5"
  • Spare 215/75R/17.5 LRH on Dually
  • Jumbo Ramps
  • Combo Dovetail (Ramps Covered w/Diamond Plate on Bottoms and Pop-Up Center. Dovetail Level w/Deck.)
  • 3rd Ramp on Dovetail
  • 7 1/2' Slide-N-Ramps (Straight Deck Only)
  • Dual Hydraulic Jack 12K Replacing Dual 12K 2-Speed Jack
  • Deck Over Gooseneck (8'x8')
  • Rolling Tailboard
  • Extra 1" D-Rings  (Priced Per Ring)
  • Underbody Toolbox (Ask about size options.)
  • 2 - 15K Electric/Hydraulic Brakes w/Drum (Includes Elecdrolic 1600 PSI Pump Kit)
  • 2 - 15K HD Air Brakes w/ABS
  • Air Ride Suspension  (Will Require Compressor Kit Below if Air NA on Tow Vehicle.)
  • Air Ride Compressor Kit
  • Other Options Available
