Trailers - Flatbeds/Deckovers

Print

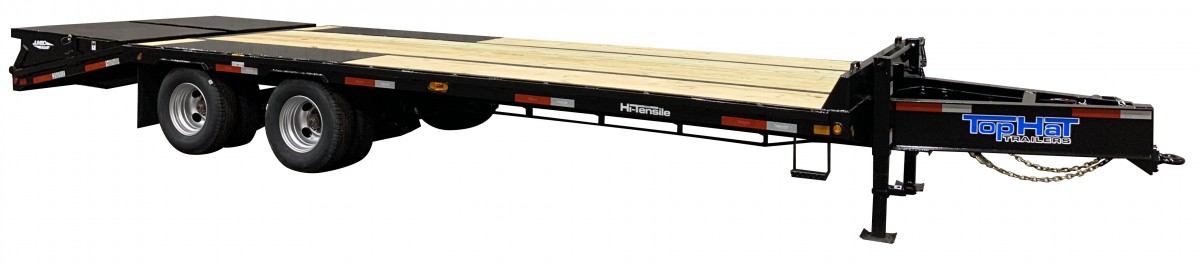

PINTLE 259 LO PROFILE HEAVY DUTY

Product Image 0
Product Preview 0

  • Coupler: 1" Plate w/Adjustable Pintle Eye
  • Jack: Dual 10000# Drop Leg
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Spare Tire Rack (Spare Tire Optional)
  • Chain Tray In Tongue
  • 4 - 1" D-Rings
  • Wiring Harness w/Sealed LED Lights
  • Driver & Curb Side Steps
  • DOT Reflective Tape
  • Dexter HD Adjustable Suspension
  • Color: Black
  • Frame: 12"x19# I-Beam
  • Tongue: Integrated w/Frame
  • Crossmembers: 3" Channel 16" OC Thru Frame
  • Side Rails: 6" Channel
  • 3/8x2 Flat Rubrail
  • Stake Pockets 24" OC
  • Pipe Spools Between Each Stake Pocket
  • Frame to Crossmember Gussets
  • Low Profile (Crossmembers Thru Frame)
  • Dovetail w/Fold Over Spring Assist Ramps on +5 Models
  • Deck Height: 34.5"
  • Spare ST235/80R/16 LRE on Dual
  • Upgrade to ST235/85R/16 LRG on Dual
  • Upgrade to 215/75R/17.5 LRH on Dual
  • Single Wheel w/235/75R/17.5 LRJ Tire
  • Jumbo Ramps
  • 3rd Ramp on Dovetail
  • HD Dozer Dovetail
  • Dual 2-Speed Jacks
  • Dual Hydraulic Jack 12K Replacing Dual 12K Drop Leg Jack
  • Extra 1" D-Rings
  • Underbody Toolbox  (Ask about size options.)
  • Lockable Toolbox In Tongue In Place Of Chain Tray
  • 2 - 12K Electric/Hydraulic Brakes w/Drum (Includes Elecdrolic 1600 PSI Pump Kit)
  • 2 - 12K Electric/Hydraulic Brakes w/Disc (Includes Elecdrolic 1600 PSI Pump Kit)
  • 2 - 12K HD Air Brakes w/ABS
  • Air Ride Suspension  (Will Require Compressor Kit Below if Air NA on Tow Vehicle.)
  • Air Ride Compressor Kit
