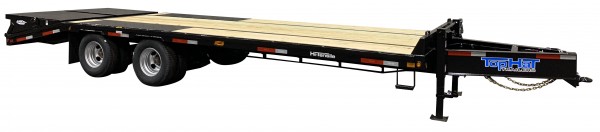

PINTLE 259 LO PROFILE HEAVY DUTY
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| PINTLE 259 LO PROFILE HEAVY DUTY | ||||
| 20+5x102" PN 259 | 2 - 12000# Dexter | ST235/80R/16 LRE | 12000# | 25900# |
| 25+5x102" PN 259 | 2 - Electric Brakes Nev-R-Adjust | |||
| Oil Bath - 8 Lug |
- Coupler: 1" Plate w/Adjustable Pintle Eye
- Jack: Dual 10000# Drop Leg
- Floor: 2" Treated Pine
- Brake: Electric All Wheel
- Break Away Unit w/Charger
- Spare Tire Rack
- Chain Tray In Tongue
- 4 - 1" D-Rings
- Wiring Harness w/Sealed LED Lights
- Driver & Curb Side Steps
- DOT Reflective Tape
- Dexter HD Adjustable Suspension
- Color: Black
- Frame: 12"x19# I-Beam
- Tongue: Integrated w/Frame
- Crossmembers: 3" Channel 16" OC Thru Frame
- Side Rails: 6" Channel
- 3/8x2 Flat Rubrail
- Stake Pockets 24" OC
- Pipe Spools Between Each Stake Pocket
- Frame to Crossmember Gussets
- Low Profile
- Dovetail w/Fold Over Spring Assist Ramps on +5 Models
- Deck Height: 34.5"
- Spare ST235/80R/16 LRE on Dual
- Upgrade to ST235/85R/16 LRG on Dual
- Upgrade to 215/75R/17.5 LRH on Dual
- Single Wheel w/235/75R/17.5 LRJ Tire
- Jumbo Ramps
- 3rd Ramp on Dovetail
- HD Dozer Dovetail
- Dual 2-Speed Jacks
- Dual Hydraulic Jack 12K Replacing Dual 12K Drop Leg Jack
- Extra 1" D-Rings
- Underbody Toolbox
- Lockable Toolbox In Tongue In Place Of Chain Tray
- 2 - 12K Electric/Hydraulic Brakes w/Drum
- 2 - 12K Electric/Hydraulic Brakes w/Disc
- 2 - 12K HD Air Brakes w/ABS
- Air Ride Suspension
- Air Ride Compressor Kit
