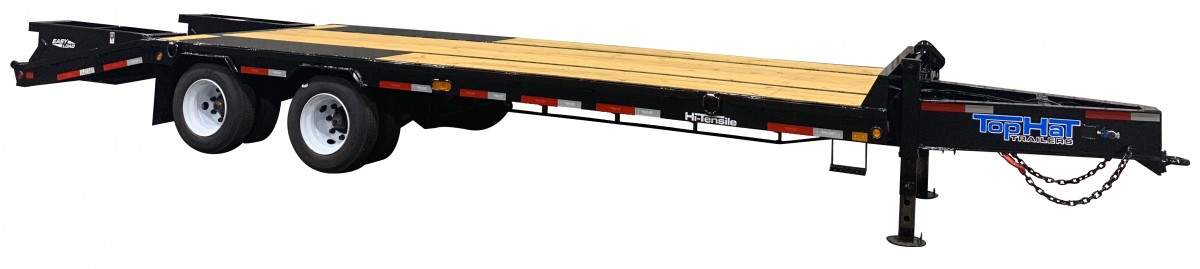

PINTLE 300 LO PROFILE SUPER DUTY



Model Axle Description Tire Size GAWR GVWR
PINTLE 300 LO PROFILE SUPER DUTY
20+5x102" PN 300 2 - 15000# Dexter 215/75R/17.5 LRH 15000# 30000#
25+5x102" PN 300 2 - Electric Brakes Nev-R-Adjust 10-Hole

  • Coupler: 1" Plate w/Adjustable Pintle Eye
  • Jack: Dual 2 Speed
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Spare Tire Rack (Spare Tire Optional)
  • Lockable Storage Box in Tongue
  • 4 - 1" D-Rings
  • Wiring Harness w/Sealed LED Lights
  • Driver & Curb Side Steps
  • DOT Reflective Tape
  • Dexter HD Adjustable Suspension
  • Color: Black
  • Frame: 12"x22# I-Beam
  • Tongue: Intragrated w/Frame
  • Crossmembers: 4" Channel 16" OC Thru Frame
  • Side Rails: 8" Channel
  • 3/8x2 Flat Rubrail
  • Stake Pockets 24" OC
  • Pipe Spools Between Each Stake Pocket
  • Frame to Crossmember Gussets
  • Low Profile (Crossmembers Thru Frame)
  • Dovetail w/Fold Over Spring Assist Ramps on +5 Models
  • Deck Height: 34.5"
  • Spare 215/75R/17.5 LRH on Dually
  • Jumbo Ramps
  • Combo Dovetail (Ramps Covered w/Diamond Plate on Bottoms & Pop-Up Center. Dovetail Level w/Deck.)
  • 3rd Ramp on Dovetail
  • Dual Hydraulic Jack 12K Replacing Dual 12K 2-Speed Jack
  • Extra 1" D-Rings
  • Underbody Toolbox  (Ask about size options.)
  • Lockable Toolbox In Tongue In Place Of Chain Tray
  • 2 - 15K Electric/Hydraulic Brakes w/Drum (Includes Elecdrolic 1600 PSI Pump Kit)
  • 2 - 15K HD Air Brakes w/ABS
  • Air Ride Suspension  (Will Require Compressor Kit Below if Air NA on Tow Vehicle.)
  • Air Ride Compressor Kit
