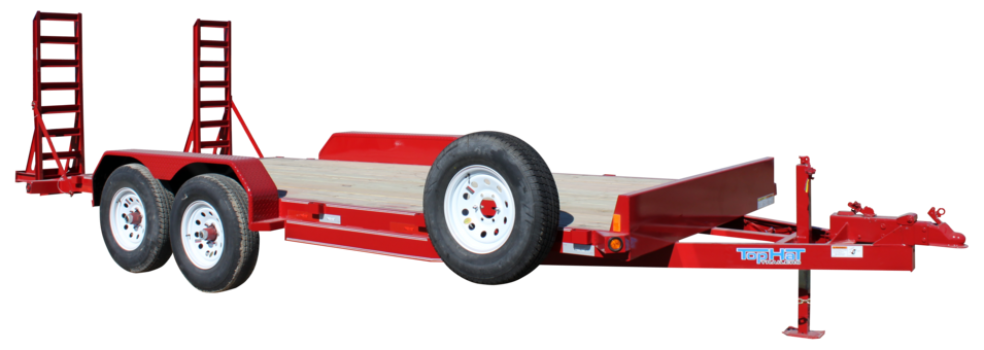

EQUIPMENT CARRIER 10K



Model Axle Description Tire Size GAWR GVWR
EQUIPMENT CARRIER 10K
12x83" EC 10K 2 - 5200# Dexter ST225/75R/15 LRD 5080# 9990#
14x83" EC 10K 1 - Electric Brake Nev-R-Adjust
16x83" EC 10K E-Z Lube - 1/2 Cambered
18x83" EC 10K
20x83" EC 10K
22x83" EC 10K
24x83" EC 10K
  • Coupler: 2 5/16" Forged Adjustable 5/Position
  • Jack: 7000# Drop Leg
  • Fenders: HD Diamond Plate Straight
  • Floor: 2" Treated Pine
  • Brake: 2 Wheel Electric Thru 20'
  • Brake: 4 Wheel Electric on 22-24'
  • Break Away Unit w/Charger
  • Suspension: Double Eye
  • DOT Reflective Tape
  • Sealed Flush Mount LED Lights
  • Stake Pockets
  • Spare Rack
  • Colors: Refer to Chart
  • Frame: 5" Channel Thru 20'
  • Frame: 6" Channel on 22-24'
  • Front Bumper w/Side Gussets
  • Crossmembers: 3" Formed Channel 16" OC
  • Tongue: 5" Channel Wrap x 48"
  • Flush Floor
  • Flush Floor to Fender Ht. 10" on 5" Frame
  • 8" on 6" Frame
  • 2' Dovetail
  • Electric Brake
  • 10000# Drop Leg Jack
  • Spare ST225/15 LRD on 6-Hole
  • 4' Slide-N-Ramps
  • 5' Slide-N-Ramps
  • 6' Slide-N-Ramps
  • 4' Fold Up Channel Ramps
  • 5' Fold Up Channel Ramps
  • 6' Fold Up Channel Ramps
  • Spring Assist on Fold Up Ramps
  • Drive Over Fenders
  • Weld-on D-Rings 5/8"
  • Rub Rail w/Stake Pockets
  • Delete or Change Length of Dovetail
  • 8'6" Wide Floor to Outside of Fender
  • 3" Square Tube Toprail
  • Gooseneck
  • Other Options Available
