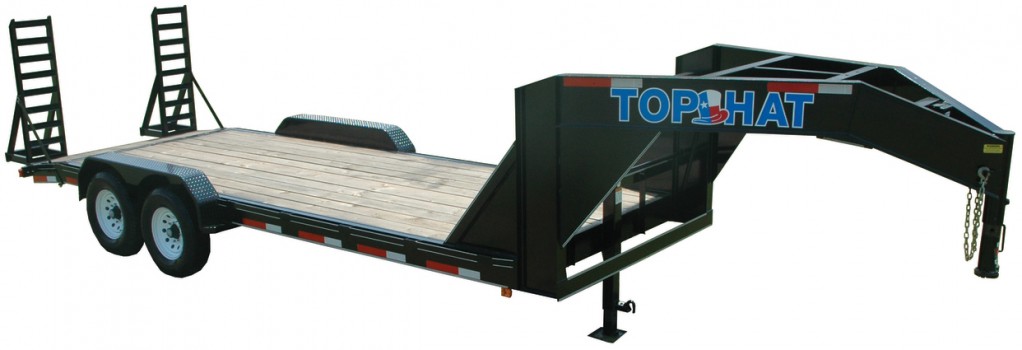

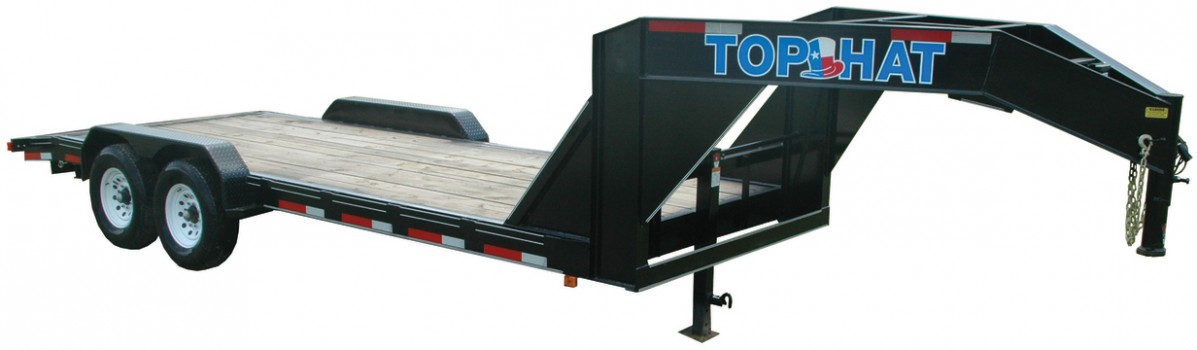

EQUIPMENT HAULER GOOSENECK 14K
Model
Axle Description
Tire Size
GAWR
GVWR
EQUIPMENT HAULER GOOSENECK 14K
16x83" EHGN 14K
2 - 7000#
Dexter
ST235/80R/16 LRE
7000#
14000#
18x83" EHGN 14K
2 - Electric Brakes
Nev-R-Adjust
20x83" EHGN 14K
E-Z Lube - 1/2 Cambered
22x83" EHGN 14K
24x83" EHGN 14K
26x83" EHGN 14K
28x83" EHGN 14K
30x83" EHGN 14K
32x83" EHGN 14K
Standard Equipment
Coupler: 2 5/16" Round Adjustable
Jack: 10000# Drop Leg
Fenders: HD Diamond Plate w/Drop
Floor: 2" Treated Pine
Brake: Electric All Wheel
Break Away Unit w/Charger
Suspension: Slipper Spring
DOT Reflective Tape
Sealed Flush Mount LED Lights
Stake Pockets
Spare Rack
Colors: Refer to Chart
Frame Structure
Frame: 6" Channel on 16-24'
Frame: 8" Channel on 26-32'
Neck & Risers: 10"x12# I-Beam
4" Channel Truss from Fender to Front
Crossmembers: 3" Channel 16" OC
1/4x2 Rubrail
(See Options)
Flush Floor w/Fender Ht. 11" on 6" Frame, 9" on 8" Frame, and 7" on 10" Frame
2' Treadplate Dovetail
Options
Delete Rubrail
(Per Linear Ft)
Spare ST235/80R/16 LRE on 8-Hole
Dual 10000# Drop Leg Jacks
Toolbox Between Risers
(Requires Dual Jacks)
Weld-On D-Rings 5/8"
(Priced Per D-Ring)
4' Slide-N-Ramps
5' Slide-N-Ramps
6' Slide-N-Ramps
4' Fold Up Channel Ramps
5' Fold Up Channel Ramps
6' Fold Up Channel Ramps
Spring Assist on Fold Up Ramps
Self Cleaning Dovetail w/Jumbo Ramps
HD 3/16" Smooth Drive Over Fenders
(EH Style Only)
Change Length of Treadplate Dovetail to 3' or 4'
3" Square Tube Toprail
(Side Option - Priced Per Ft)
Other Options Available
