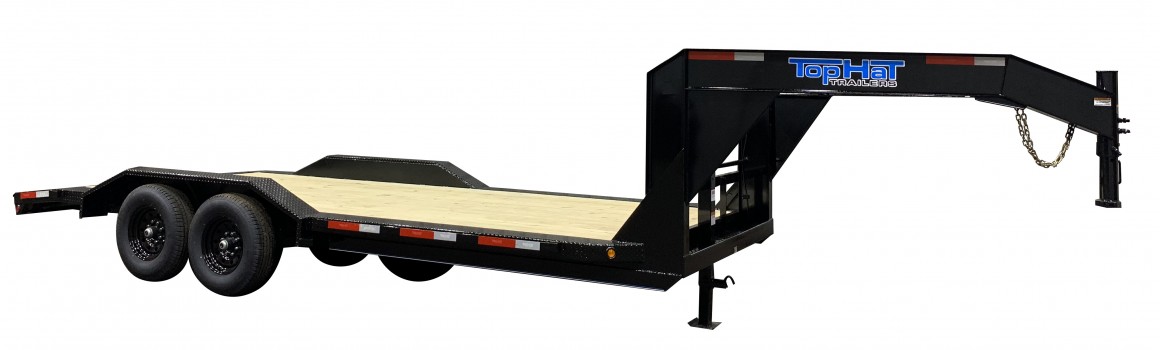

GOOSENECK WIDE DRIVE OVER 14K


Model Axle Description Tire Size GAWR GVWR
GOOSENECK WIDE DRIVE OVER 14K
16x102" GNWDO 14K 2 - 7000# Dexter ST235/80R/16 LRE 7000# 14000#
18x102" GNWDO 14K 2 - Electric Brakes Nev-R-Adjust
20x102" GNWDO 14K E-Z Lube - 1/2 Cambered
22x102" GNWDO 14K
24x102" GNWDO 14K
26x102" GNWDO 14K
28x102" GNWDO 14K
30x102" GNWDO 14K
32x102" GNWDO 14K
  • Coupler: 2 5/16" Round Adjustable
  • Jack: 10000# Drop Leg
  • Fenders: Smooth Drive Over w/Center Brace (3/16")
  • Floor: 2" Treated Pine
  • Brake: Electric 4 Wheel w/Break Away Unit & Charger
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Sealed Flush Mount LED Lights
  • Stake Pockets & Rubrail
  • Spare Rack
  • 5' Slide-N-Ramps 3" Channel  (Rear)
  • Colors: Refer to Chart
  • Frame: 6" Channel on 16-24'
  • Frame: 8" Channel on 26-32'
  • Neck & Risers: 10"x12# I-Beam
  • 4" Channel Truss from Fender to Front
  • Crossmembers: 3" Channel 16" OC
  • Flush Floor w/Side Extensions
  • 83" Between Fenders
  • 102" Overall to Outside of Extensions
  • 2' Treadplate Dovetail
  • Floor to Fender Ht. 11" w/6" Frame
  • 9" w/8" Frame
  • Spare ST235/80R/16 LRE on 8-Hole
  • Dual 10000# Drop Leg Jacks
  • Toolbox Between Risers  (Requires Dual Jacks)
  • Fold Up 2K Stabalizer Jack (Each)
  • Tread Plate Steel Floor (Per Sq Ft)
  • Weld-On D-Rings 5/8" (Each)
  • Self Cleaning Dovetail w/Jumbo Ramps
  • Change Length of Treadplate Dovetail to 3' or 4'
  • Other Options Available
