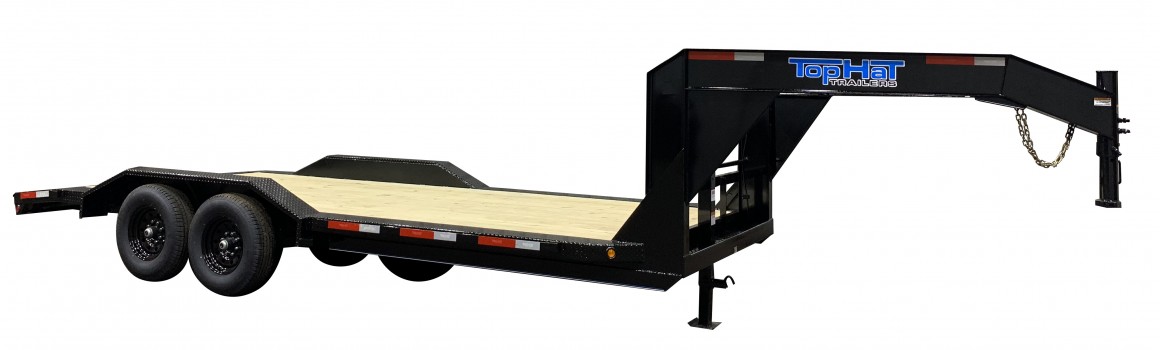

GOOSENECK WIDE DRIVE OVER 16K


Model Axle Description Tire Size GAWR GVWR
GOOSENECK WIDE DRIVE OVER 16K
16x102" GNWDO 16K 2 - 8000# Dexter 215/75R/17.5 LRH 8000# 17500#
18x102" GNWDO 16K 2 - Electric Brakes Nev-R-Adjust 8 Hole Black Mod
20x102" GNWDO 16K Oil Bath - 1/2 Cambered
22x102" GNWDO 16K 5/8" Lug Studs
24x102" GNWDO 16K
26x102" GNWDO 16K
28x102" GNWDO 16K
30x102" GNWDO 16K
32x102" GNWDO 16K
  • Coupler: 2 5/16" Round Adjustable
  • Jack: 10000# Drop Leg
  • Fenders: Smooth Drive Over w/Center Brace (3/16")
  • Floor: 2" Treated Pine
  • Brake: Electric 4 Wheel w/Break Away Unit & Charger
  • Sealed Flush Mount LED Lights
  • Stake Pockets & Rubrail
  • Spare Rack
  • 5' Slide-N-Ramps 3" Channel Rear)
  • Colors: Refer to Chart
  • Frame: 8" Channel on 16-24'
  • Frame: 10" Channel on 26-32'
  • Neck & Risers: 10"x12# I-Beam
  • 4" Channel Truss from Fender to Front
  • Crossmembers: 3" Channel 16" OC
  • Flush Floor w/Side Extensions
  • 83" Between Fenders (81" w/3 1/2" Brake Pad)
  • 102" Overall to Outside of Extensions
  • 2' Treadplate Dovetail
  • Floor to Fender Ht. 9" w/8" Frame
  • Spare 215/75R/17.5 LRH on 8-Hole Black Mod
  • 3 3/8" Brake Pads (81" Width Between Fenders)
  • Dual 10000# Drop Leg Jacks
  • Toolbox Between Risers (Requires Dual Jacks)
  • Fold Up 2K Stabalizer Jack (Each)
  • Tread Plate Steel Floor (Per Sq Ft)
  • Weld-On D-Rings 5/8" (Each)
  • Self Cleaning Dovetail w/Jumbo Ramps
  • Change Length of Treadplate Dovetail to 3' or 4'
  • Other Options Available
