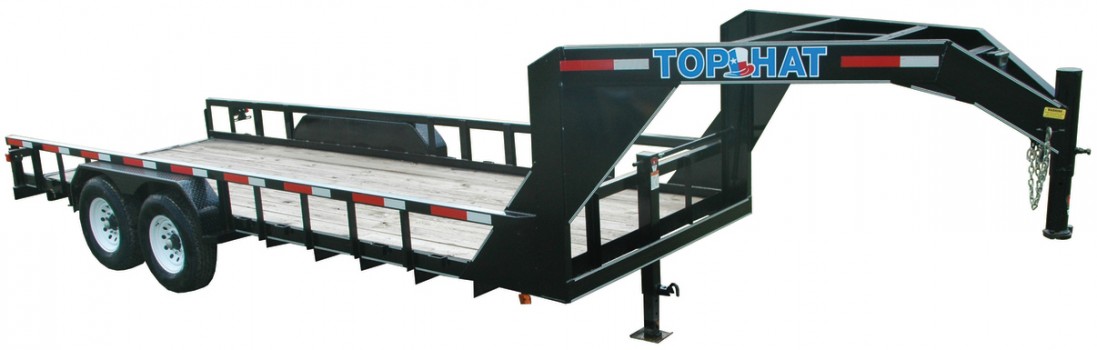

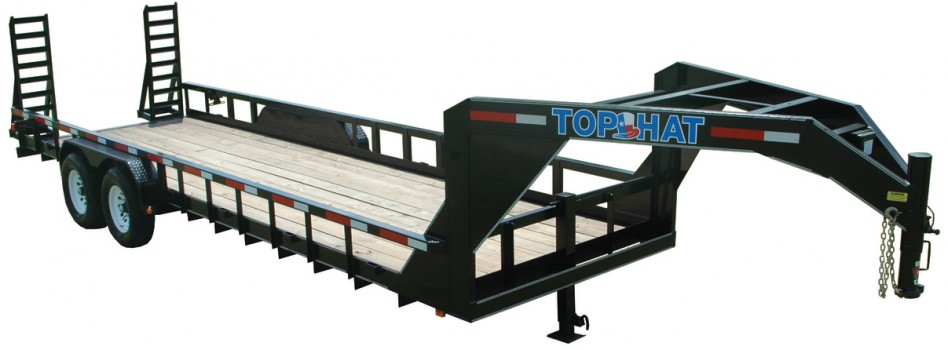

HEAVY HAULER GOOSENECK 14K



Model Axle Description Tire Size GAWR GVWR
HEAVY HAULER GOOSENECK 14K
16x83" HHGN 14K 2 - 7000# Dexter ST235/80R/16 LRE 7000# 14000#
18x83" HHGN 14K 2 - Electric Brakes Nev-R-Adjust
20x83" HHGN 14K E-Z Lube - 1/2 Cambered
22x83" HHGN 14K
24x83" HHGN 14K
  • Coupler: 2 5/16" Round Adjustable
  • Jack: 10000# Drop Leg
  • Fenders: HD Diamond Plate w/Drop
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Suspension: Slipper Spring
  • DOT Reflective Tape
  • Spare Rack
  • Flush Mount LED Lights
  • Colors: Refer to Chart
  • Frame: 5x3x1/4 on 16-20'
  • Frame: 6x4x5/16 on 22-24'
  • Toprail: 3" Square Tube
  • Crossmembers: 3" Formed Channel
  • Neck & Risers: 8" Channel
  • Uprights: 3x2x3/16
  • Spare ST235/80R/16 LRE on 8-Hole
  • Dovetail
  • 4' Slide-N-Ramps
  • 5' Slide-N-Ramps
  • 6' Slide-N-Ramps
  • 4' Fold Up Channel Ramps
  • 5' Fold Up Channel Ramps
  • 6' Fold Up Channel Ramps
  • Spring Assist on Fold Up Ramps
  • 6000# Axles
  • Monorail Option
  • Other Options Available
