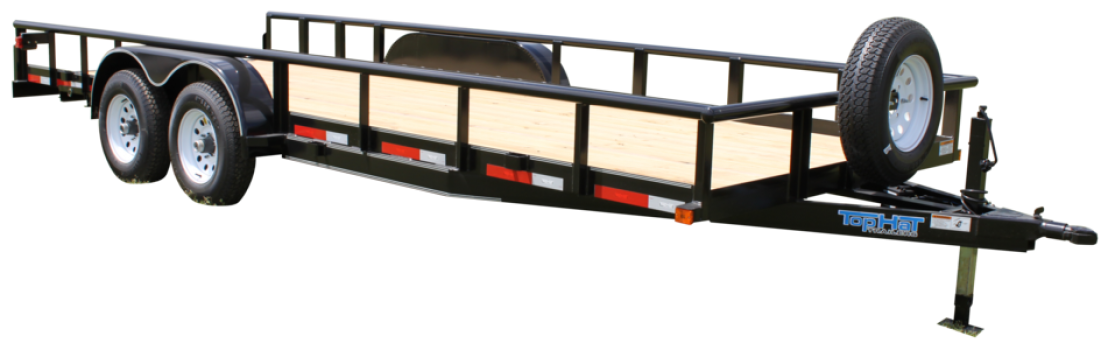

HEAVY PIPE 10K



Model Axle Description Tire Size GAWR GVWR
HEAVY PIPE 10K
12x83" HP 10K 2 - 5200# Dexter ST225/75R/15 LRD 5080# 9990#
14x83" HP 10K 1 - Electric Brake Nev-R-Adjust
16x83" HP 10K E-Z Lube - 1/2 Cambered
18x83" HP 10K
20x83" HP 10K
22x83" HP 10K
24x83" HP 10K
  • Coupler: 2 5/16" Forged A-Frame
  • Jack: 7000# Drop Leg
  • Fenders: HD Diamond Plate Straight
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel Thru 20'
  • Brake: Electric 4 Wheel on 22-24'
  • Break Away Unit w/Charger
  • Suspension: Double Eye Spring
  • Stake Pockets
  • Square Back w/Board Bracket
  • Spare Rack
  • Colors: Refer to Chart
  • Frame: 5x3x1/4 Thru 20'
  • Frame: 5" Channel 22-24'
  • Toprail: 2 3/8" Pipe
  • Crossmembers: 3" Formed Channel
  • Tongue: 5" Channel Wrap
  • Uprights: 3x2x3/16
  • Electric Brake
  • Bolt-on LED Lights
  • Flush Mount LED Lights
  • 10000# Drop Leg Jack
  • Spare ST225/15 Radial LRD on 6-Hole
  • 4' Slide-N-Ramps
  • 5' Slide-N-Ramps
  • 6' Slide-N-Ramps
  • HD Split Tractor Tailgate
  • HD Split Tailgate 48" Tall x 77-83" Box
  • HD Split Tractor Rampgate 48" Tall x 77-83" Box
  • *HD Tractor Gates have Spring Assist
  • Gooseneck w/8" Channel Risers & Neck
  • Other Options Available
