Top Hat Trailers

HEAVY TUBE 14K

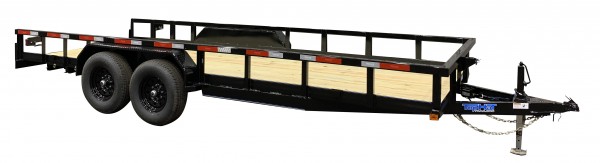

main product image
Model Axle Description Tire Size GAWR GVWR
HEAVY TUBE 14K
12x83" HT 14K 2 - 7000# Dexter ST235/80R/16 LRE 7000# 14000#
14x83" HT 14K 2 - Electric Brakes Nev-R-Adjust
16x83" HT 14K E-Z Lube - 1/2 Cambered
18x83" HT 14K
20x83" HT 14K
  • Coupler: 2 5/16" Forged Adjustable 5/Position
  • Jack: 7000# Drop Leg
  • Fenders: HD Diamond Plate Straight
  • Floor: 2" Treated Pine
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Suspension: Slipper Spring
  • Stake Pockets
  • DOT Reflective Tape
  • Square Back w/Board Bracket
  • Spare Rack
  • LED Lights
  • Colors: Refer to Chart
  • Frame: 5x3x1/4 Thru 20'
  • Toprail: 3" Square Tube
  • Crossmembers: 3" Channel
  • Tongue: 6" Channel Wrap
  • Uprights: 3x2x3/16
  • Spare ST235/80R/16 LRE on 8-Hole
  • 5' Slide-N-Ramps
  • 5' Fold Up Channel Ramp
  • Spring Assist on Fold Up Ramps
  • 6000# Axles
  • No Other Sizes or Options Available
