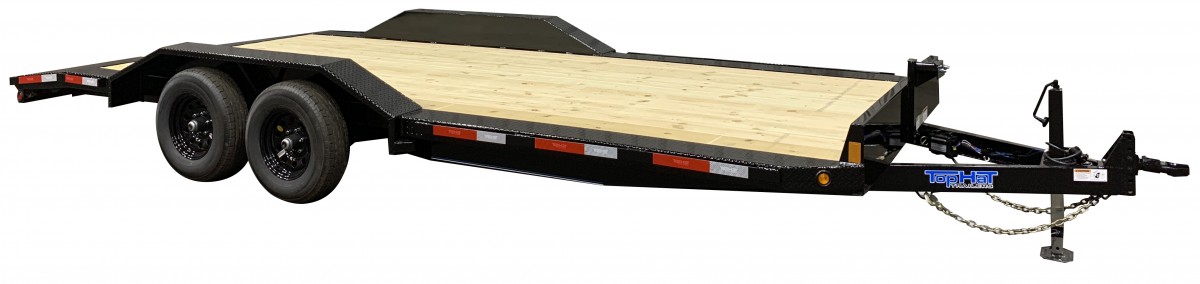

WIDE DRIVE OVER 10K


Model Axle Description Tire Size GAWR GVWR
WIDE DRIVE OVER 10K
12x102" WDO 10K 2 - 5200# Dexter ST225/75R/15 LRD 5080# 9990#
14x102" WDO 10K 1 - Electric Brake Nev-R-Adjust
16x102" WDO 10K E-Z Lube - 1/2 Cambered
18x102" WDO 10K
20x102" WDO 10K
22x102" WDO 10K
24x102" WDO 10K
  • Coupler: 2 5/16" Forged Adjustable 5/Position
  • Jack: 7000# Set Back
  • Fenders: Smooth Drive Over w/Center Brace (3/16")
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Suspension: Double Eye
  • Sealed Flush Mount LED Lights
  • Stake Pockets & Rubrail
  • Spare Rack
  • 5' Slide-N-Ramps 2" Sq. Tube  (Rear)
  • Colors: Refer to Chart
  • Frame: 5" Channel Thru 20'
  • Frame: 6" Channel on 22-24'
  • Tongue: 5" Channel Wrap x 48"
  • Crossmembers: 3" Channel 16" OC
  • Front Bumper w/Side Gussets
  • Flush Floor w/Side Extensions
  • 83" Between Fenders
  • 102" Overall to Outside of Extensions
  • 2' Treadplate Dovetail
  • Spare ST225/15 Radial LRD on 6-Hole
  • Electric Brake 2nd Axle (5200#)
  • Tread Plate Steel Floor (Per Sq Ft)
  • Weld-On D-Rings 5/8" (Each)
  • Change Length of Treadplate Dovetail to 3' or 4'
  • Other Options Available
