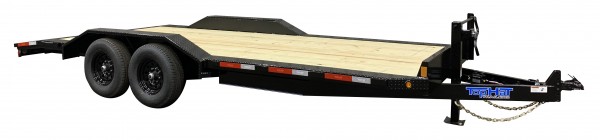

WIDE DRIVE OVER 16K
| Model | Axle Description | Tire Size | GAWR | GVWR |
|---|---|---|---|---|
| WIDE DRIVE OVER 16K | ||||
| 16x102" WD16 | 2 - 8000# Dexter | 215/75R/17.5 LRH | 8000# | 17500# |
| 18x102" WD16 | 2 - Electric Brakes Nev-R-Adjust | 8 Hole Black Mod | ||
| 20x102" WD16 | Oil Bath - 1/2 Cambered | |||
| 22x102" WD16 | 5/8" Lug Studs | |||
| 24x102" WD16 | ||||
| 26x102" WD16 | ||||
| 28x102" WD16 | ||||
| 30x102" WD16 | ||||
| 32x102" WD16 |
- Coupler: 2 5/16" Forged Adjustable 5/Position
- Jack: 10000# Drop Leg
- Fenders: Smooth Drive Over w/Center Brace
- Floor: 2" Treated Pine
- Brake: Electric 4 Wheel w/Break Away Unit & Charger
- Sealed Flush Mount LED Lights
- Stake Pockets & Rubrail
- Spare Rack
- 5' Slide-N-Ramps 3" Channel
- Colors: Refer to Chart
- Frame: 8" Channel
- Tongue: 6" Channel Thru 24'
- Tongue: 8" Channel on 26-32'
- Crossmembers: 3" Channel 16" OC
- Front Bumper w/Side Gussets
- Flush Floor w/Side Extensions
- 83" Between Fenders
- 102" Overall to Outside of Extensions
- 2' Treadplate Dovetail
- Floor to Fender Ht. 9" w/8" Frame
- Spare 215/75R/17.5 LRH on 8-Hole Black Mod
- 3 3/8" Brake Pads
- Fold Up 2K Stabalizer Jack
- Pintle Eye Adjustable 35K
- Tread Plate Steel Floor
- Weld-On D-Rings 5/8"
- Self Cleaning Dovetail w/Jumbo Ramps
- Change Length of Treadplate Dovetail to 3' or 4'
- Other Options Available
