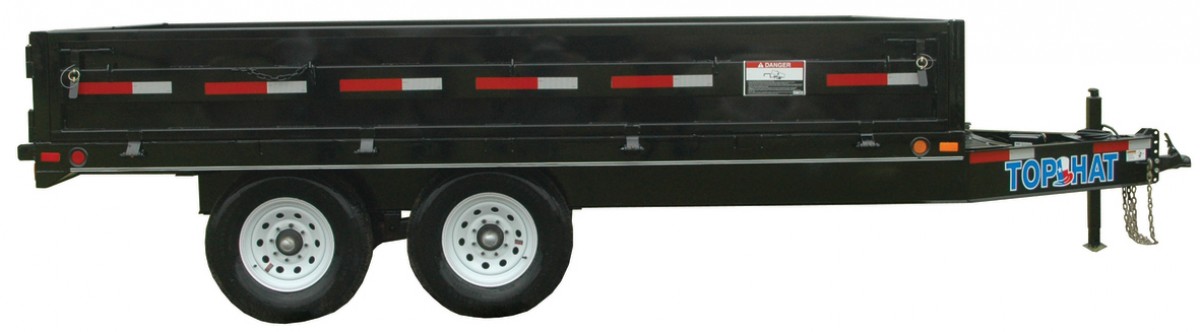

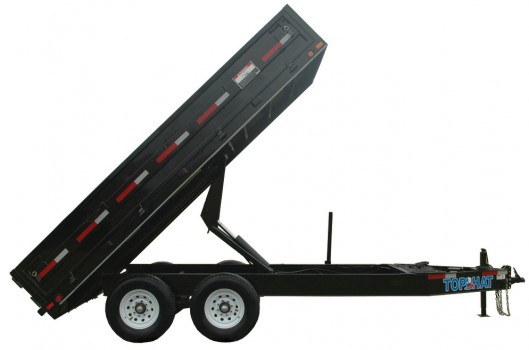

DROP SIDE DUMP 140
Model
Axle Description
Tire Size
GAWR
GVWR
DROP SIDE DUMP 140
8x12 DSDP 140
2 - 7000#
Dexter
ST235/80R/16 LRE
7000#
14000#
8x14 DSDP 140
2 - Electric Brakes
Nev-R-Adjust
E-Z Lube - 1/2 Cambered
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 7000# Drop Leg
Floor: 10 GA Sheet Metal
Width: 92" Inside Box
Brake: Electric All Wheel
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Fold Down Sides
(Allows Forklift Access)
Dual Swing Out Doors
Ramp Pockets w/ 7' Ramps
5/8" D-Rings in Box
(4)
Spare Rack
Sealed Flush Mount LED Lights
Wiring Harness
Lockable Battery/Pump Box
Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
Color: Black
Frame Structure
Frame & Tongue: 8" I-Beam Intergrated
Sides: Fold Down 20" Tall 12 GA
Dump Body Frame: 6" Channel
Crossmembers: 3" Channel 16" OC
Tarp Bracket & Tie Downs
Dump Components Listed Below -
Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10'Cord
Safety Prop
Caulked Seams on Dump Body
Options
Deduct 7' Ramps
Tarp
(Shipped Loose)
Dump Tarp Installation
Gas Engine Powered Pump in Lieu of Electric Pump
Spare ST235/80R/16 LRE on 8-Hole
7Ga Steel Floor in Lieu of 10Ga
(Priced Per Sq Ft)
GN w/10" I-Beam Risers & Neck
