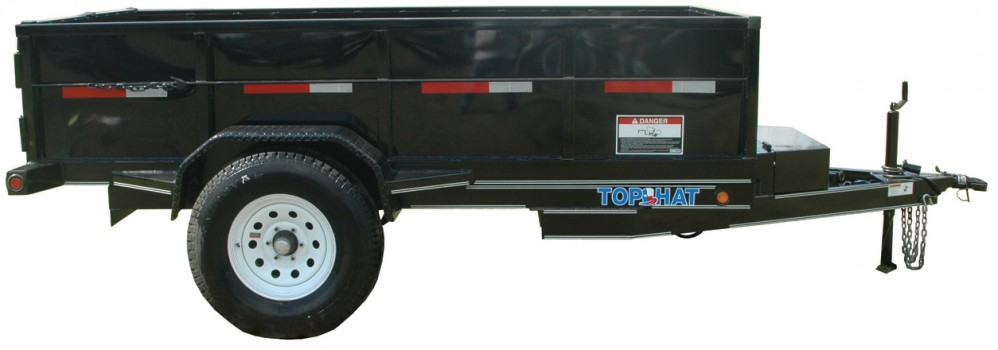

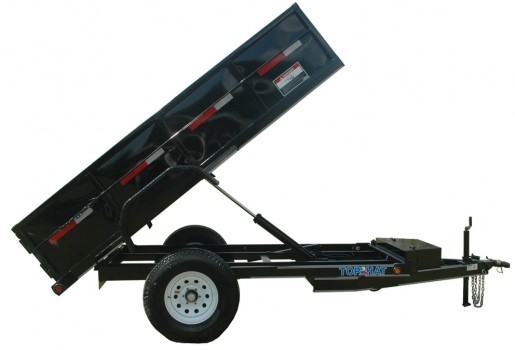

DUMP 50



Model Axle Description Tire Size GAWR GVWR
DUMP 50
5x10 DUMP 5K 1-5200# Dexter ST225/75D/15 LRD 5000# 5000#
  Electric Brake Nev-R-Adjust
  E-Z Lube-1/2 Cambered
  • Coupler: 2" Forged A-Frame
  • Jack: 2000#
  • Fenders: HD Double Broke Single Axle
  • Floor: 10 GA Sheet Metal
  • Width: 60" Inside Box
  • Axle: Dexter Cambered E-Z Lube
  • Brake: Electric Nev-R-Adjust 2 Wheel
  • Break Away Unit w/Charger
  • Primed & Painted Underside
  • Dual Swing Out Doors
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Wiring Harness
  • Lockable Battery Box/Pump Box
  • Deep Cycle 12V Marine Battery w/110V Charger
  • Standard Color: Black
  • Frame: 4" Channel
  • Sides: 22" Formed
  • Tongue: 5" Channel Wrap
  • Dump Body Frame: 4" Channel
  • Crossmembers: 3" Channel 24" OC
  • Tarp Bracket & Tie Rod
  • Dump Components: 5K / 7K
  • Hoist: Single Cylinder
  • Power Up/Power Down
  • Control: Pistol Grip w/10' Cord
  • Safety Prop
  • Caulked Seams on Dump Body
  • Dump 50 Options:
  • Single Flip Up Door
  • Tailgate / Spreader Gate
  • D-Rings Inside Box (Per Ring)
  • Scissor Lift
  • Tarp (Shipped Loose)
  • Dump Tarp Installation
  • Spare ST225/15 LRD on 6-Hole
