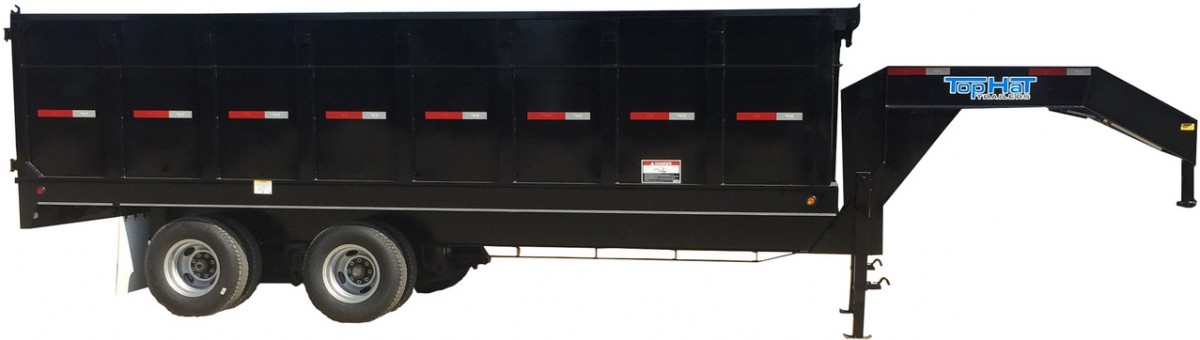

GOOSENECK DUMP 240

Product Image 0
Product Image 1
Product Preview 0
Product Preview 1

  • Coupler: 2 5/16" Round Adjustable
  • Jack: Dual 10000# Drop Leg
  • Floor: 7 GA Sheet Metal
  • Width: 91.5" Inside Box
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • Oil Bath Axles
  • DOT Reflective Tape
  • Primed & Painted Underside

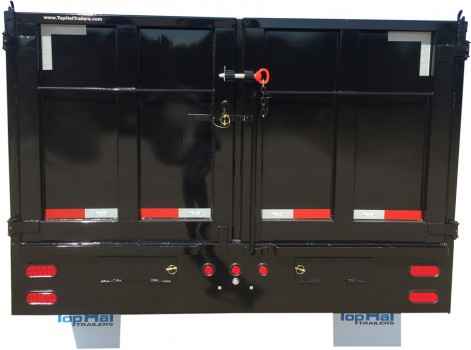

  • Dual Swing Out Doors
  • Ramp Pockets w/ 7' 6" Ramps
  • 5/8" D-Rings in Box (4)
  • Spare Rack (Spare Tire Optional)
  • Sealed Flush Mount LED Lights
  • Wiring Harness
  • Lockable Battery/Pump Box
  • Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
  • Color:Black
  • Frame: 12"x19# I-Beam
  • Neck: 12"x16# I-Beam
  • Sides: 48" Tall 12 GA Sheet Metal
  • Uprights: 24" OC
  • Dump Body Frame: 8" Channel
  • Crossmembers: 3" Channel 16" OC
  • Tarp Bracket & Tie Downs
  • Toprail: Rigid 3x2x7 GA Rectangular Tubing
  • Dump Components Listed Below -
  • Hoist: Scissor Lift
  • Power Up/Power Down
  • Control: Pistol Grip w/10' Cord
  • Safety Prop
  • Caulked Seams on Dump Body
  • Dual 2-Speed Jacks
  • Dual Hydraulic Jacks
  • Deduct 7' 6" Ramps
  • 9"x18" Grain Gate (Priced Per Gate)
  • 8x16 Tarp (Shipped Loose)
  • 8x20 Tarp (Shipped Loose)
  • Dump Tarp Installation
  • Spare ST235/80R/16 LRE on Dually
  • Gas Engine Powered Pump in Lieu of Electric Pump
  • Solar Battery Charger
