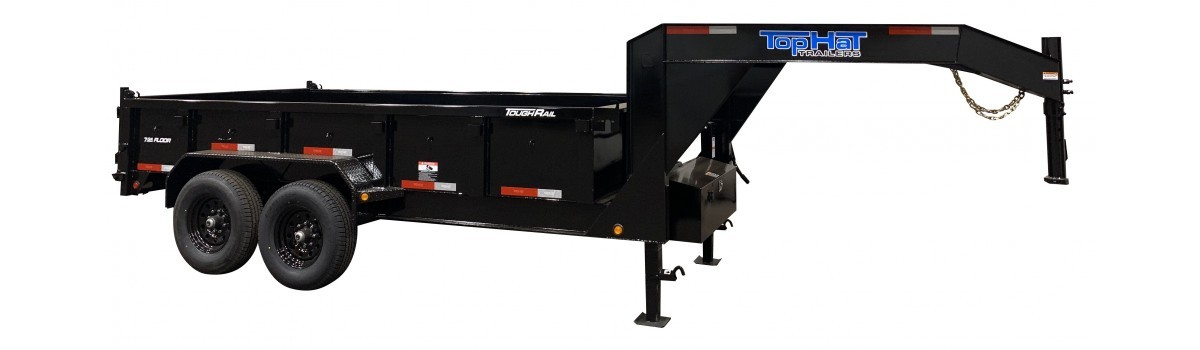

GOOSENECK LOW PROFILE DUMP 175
Model
Axle Description
Tire Size
GAWR
GVWR
GOOSENECK LOW PROFILE DUMP 175
7x14 GNDPX 175
8000#
17500#
7x16 GNDPX 175
Options
3' Tall Sheet Metal Sides
(Priced Per Linear Ft.)
4' Tall Sheet Metal Sides
(Priced Per Linear Ft.)
Gas Engine Powered Pump in Lieu of Electric Pump
Spare 215/75R/17.5 LRH on 8-Hole
Dual Hydraulic 12K Jack Replacing Dual 12K Jack
Telescopic Hoist ILO Scissor Hoist
Frame Structure
Frame: 8" I-Beam
Neck & Risers: 10" I-Beam
Sides: 24" Tall 10 GA Sheet Metal w/Toprail
Floor: 7 GA Sheet Metal
Toprail: Rigid 3x2x7 GA Rectangular Tubing
Uprights: 24" OC
Dump Body Frame: 6" Channel
Crossmembers: 3" Channel 16" OC
Tarp Bracket & Tie Downs
Loading Height 4" Lower Than DP Model
Dump Components:
Hoist: Scissor Lift
Power Up/Power Down
Control: Pistol Grip w/10' Cord
Safety Prop
Caulked Seams on Dump Body
Deep Cycle 12V Marine Battery
110 Volt-5 Amp Charger
Standard Equipment
ST 215/75R/17.5 LRH Tires on 8-Hole
8000# Dexter Oil Bath 1/2 Cambered Axles with 5/8" Lug Studs
Electric Brake on 2-Axles with 2 1/4" Brake Pads
Coupler: 2 5/16" Round Adjustable
Jack: Dual 10000# Drop Leg
Fenders: HD Diamond Plate Straight
Width: 83" Inside Box
Break Away Unit w/Charger
DOT Reflective Tape
Primed & Painted Underside
Dual Action Swing Out Doors/1 Piece Spreader Gate
Slide-N Ramp 6' Channel
5/8" D-Rings in Box
(4)
Spare Rack
Sealed Flush Mount LED Lights
Side Step
(Driver Side)
Wiring Harness
Lockable Battery/Pump Box
Crank Style Roll Tarp
Color: Black
