LOW PROFILE DUMP 140 and GOOSENECK LOW PROFILE DUMP 140


Model Axle Description Tire Size GAWR GVWR

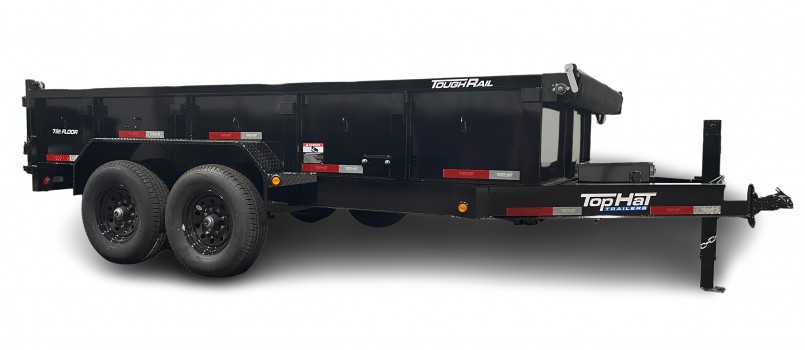

LOW PROFILE DUMP 140
7x12 DPX 140 2 - 7000# Dexter ST235/80R/16 LRE 7000# 14000#
7x12 DPX 140 2 - Electric Brakes Nev-R-Adjust
7x12 DPX 140 E-Z Lube - 1/2 Cambered

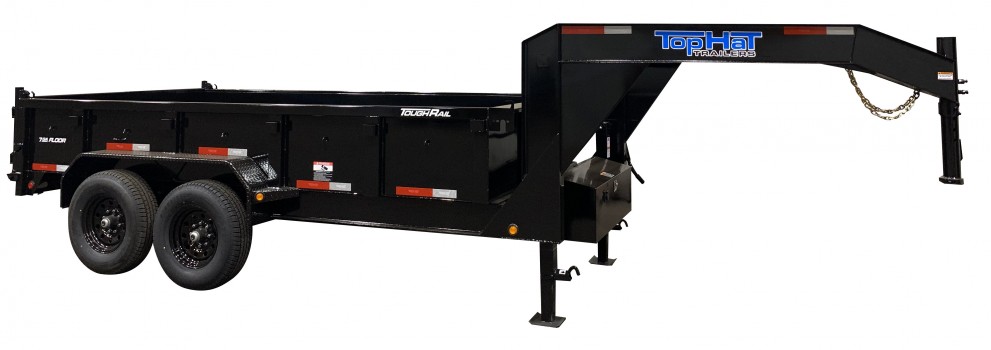

GOOSENECK LOW PROFILE DUMP 140 2 - 7000# Dexter ST235/80R/16 LRE 7000# 14000#
7x14 GNDPX 140 2 - Electric Brakes Nev-R-Adjust
7x16 GNDPX 140 E-Z Lube - 1/2 Cambered
  • Coupler: 2 5/16" Forged Adjustable 5/Position
  • Coupler: 2 5/16" Round Adjustable on GN
  • Jack: 7000# Drop Leg
  • Jack: Dual 10000# Drop Leg on GN
  • Fenders: HD Diamond Plate Straight
  • Floor: 7 GA Sheet Metal
  • Width: 83" Inside Box
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • DOT Reflective Tape
  • Primed & Painted Underside
  • Doors: Double Action (Dual Swing Out/Spreader Gate. NA w/High Sides.)
  • Ramp Pockets w/7' Ramps
  • 5/8" D-Rings in Box (4)
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Wiring Harness
  • Lockable Battery/Pump Box
  • Deep Cycle 12V Marine Battery w/110V-5 Amp Charger
  • Color: Black
  • Frame & Tongue: 8" I-Beam Intergrated
  • Neck & Risers: (GN Model) 10" I-Beam
  • Sides: 24" Tall 10 GA Sheet Metal w/Toprail
  • Toprail: Rigid 3x2 Rectangular Tubing
  • Uprights: 24" OC
  • Dump Body Frame: 6" Channel
  • Crossmembers: 3" Channel 16" OC
  • Tarp Bracket & Tie Downs
  • Loading Height 4" Lower than DP Model
  • Dump Components
  • Hoist: Scissor Lift
  • Power Up/Power Down
  • Control: Pistol Grip w/10' Cord
  • Safety Prop
  • Caulked Seams on Dump Body
