Trailers - Hydraulic Dump

Print

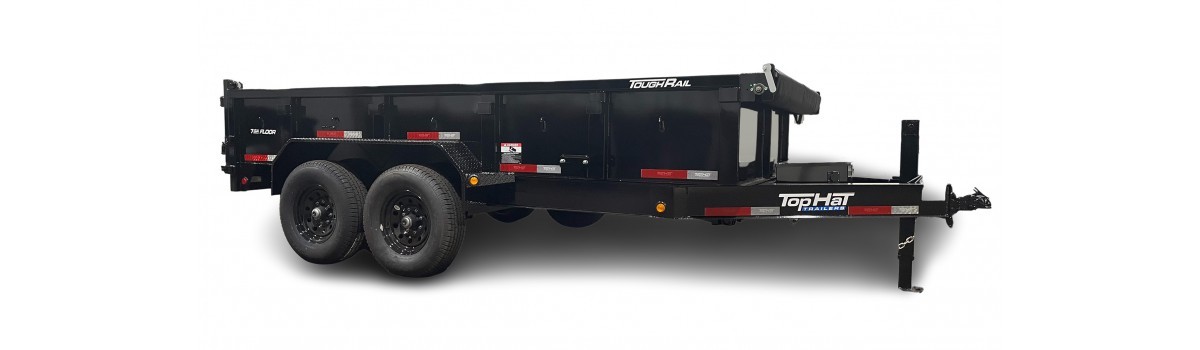

LOW PROFILE DUMP 175

Product Image 0
Product Preview 0

  • ST 215/75R/17.5 LRH Tires on 8-Hole
  • 8000# Dexter Oil Bath 1/2 Cambered Axles with 5/8" Lug Studs
  • Electric Brake on 2-Axles with 2 1/4" Brake Pads
  • Coupler: 2 5/16" Forged Adjustable 5/Position
  • Jack: 10000# Drop Leg
  • Fenders: HD Diamond Plate Straight
  • Width: 83" Inside Box
  • Break Away Unit w/Charger
  • DOT Reflective Tape
  • Primed & Painted Underside
  • Dual Action Swing Out Doors/1 Piece Spreader Gate
  • Slide-N Ramp 6' Channel
  • 5/8" D-Rings in Box  (4)
  • Spare Rack
  • Sealed Flush Mount LED Lights
  • Side Step  (Driver Side)
  • Wiring Harness
  • Lockable Battery/Pump Box
  • Crank Style Roll Tarp
  • Color: Black
  • Frame: 8" I-Beam
  • Tongue: 8" I-Beam Integrated w/Frame
  • Sides: 24" Tall 10 GA Sheet Metal w/Toprail
  • Floor: 7 GA Sheet Metal
  • Toprail: Rigid 3x2x7 GA Rectangular Tubing
  • Uprights: 24" OC
  • Dump Body Frame: 6" Channel
  • Crossmembers: 3" Channel 16" OC
  • Tarp Bracket & Tie Downs
  • Loading Height 4" Lower Than DP Model
  • Dump Components:
  • Hoist: Scissor Lift
  • Power Up/Power Down
  • Control: Pistol Grip w/10' Cord
  • Safety Prop
  • Caulked Seams on Dump Body
  • Deep Cycle 12V Marine Battery
  • 110 Volt-5 Amp Charger
  • 3' Tall Sheet Metal Sides (Priced Per Linear Ft.)
  • 4' Tall Sheet Metal Sides (Priced Per Linear Ft.)
  • Gas Engine Powered Pump in Lieu of Electric Pump
  • Spare 215/75R/17.5 LRH on 8-Hole
  • Hydraulic 12K Jack Replacing Single 12K Jack
  • Telescopic Hoist ILO Scissor Hoist
