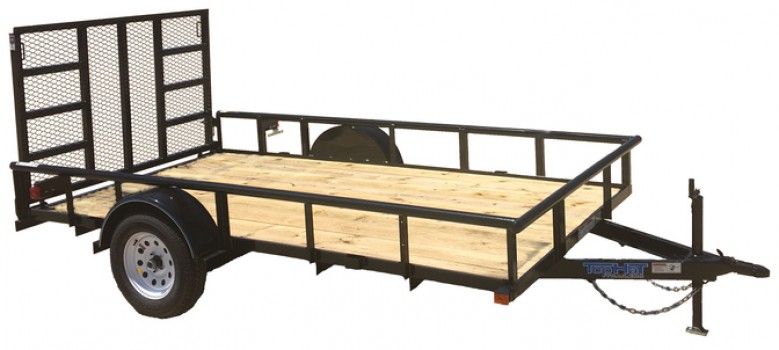

DERBY SR PIPE



Model Axle Description Tire Size GAWR GVWR
DERBY SR PIPE
8x60" DSP 3500# Dexter ST205/15 LRC Radial 2990# 2990#
10x60" DSP EZ Lube - 1/2 Cambered
12x60" DSP
14x60" DSP
10x77" DSP
12x77" DSP
14x77" DSP
10x83" DSP
12x83" DSP
14x83" DSP
  • Coupler: 2" Forged A-Frame
  • Jack: 2000#
  • Fenders: 9x32 Rolled
  • Floor: 2" Treated Pine
  • Stake Pockets
  • LED Lights
  • 48" Lay-N-Tailgate  (Accepts Spring Assist)
  • Colors: Refer to Chart
  • Frame: 3x2x3/16
  • Toprail: 2 3/8" Pipe
  • Crossmembers: 3x2x3/16
  • Tongue: 3" Channel Thru 10'
  • Tongue: 4" Channel on 12'-14'
  • Uprights: 2x2x1/8
  • TG Uprights: 2" Sq Tube 14GA
  • TG Horizontal Rungs: 3 Each Side 77-83 Only
  • Electric Brake SA w/Break Away & 7W Plug
  • Flush Mount LED Lights
  • Fold Up Jack
  • Set Back Jack
  • Spare Rack
  • Spare ST205/15 LRC on 5-Hole Radial
  • Wrap Tongue
  • Tilt Bed (Deletes TG)
  • HD Diamond Plate Fender (14ga. Double Broke Single Axle)
  • 66" Box in Place of 5 Box (DSA Only)
  • 72" Box in Place of 6.5
  • Sidegate (SG) 48"x50" (Trailer Must Have Wrap Tongue)
  • Spring Assist (Per Spring)
  • Make TG Upright (Single Axle Option Only)
  • Make TG 24" w/2' Dovetail (Single Axle Option Only)
  • Make TG 36" w/2' Dovetail (Single Axle Option Only)
  • Make TG Split (Single Axle Option Only)
  • Make TG or SG Bi-Fold (Single Axle Option Only)
  • Delete TG 60"
  • Delete TG 77-83"
  • SA-5200# Idler Axle w/ 225/15 Tire on 6H Wheel (2990 GVWR)
  • Other Options Available
