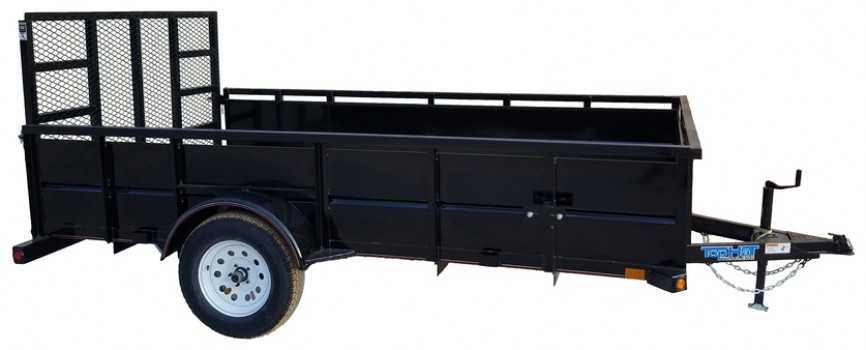

MINI RUNABOUT



Model Axle Description Tire Size GAWR GVWR
MINI RUNABOUT
10x60" MRA 3500# Dexter ST205/15 LRC Radial 2990# 2990#
10x83" MRA EZ Lube - 1/2 Cambered
12x60" MRA
12x83" MRA
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Set Back
  • Fenders: 9x32 Rolled
  • Floor: 2" Treated Pine
  • Stake Pockets
  • 48" Tall Upright Tailgate
  • Spare Rack
  • Flush Mount LED Lights
  • Colors: Refer to Chart
  • Frame: 3x2x3/16
  • Toprail: 2" Square Tube
  • Crossmembers: 3x2x3/16
  • Tongue: 3" Channel Thru 10'
  • Tongue: 4" Channel on 12'-14'
  • Uprights: 2x2x3/16
  • Fender Brace/Step
  • 24" High Side V-Crimp Sheet Metal
  • Electric Brake SA w/Break Away & 7W Plug
  • HD Diamond Plate Fender (Double Broke Single Axle)
  • Spare ST205/15 LRC on 5-Hole Radial
  • Fold Up Jack
  • 7000# Jack
  • Spring Assist
  • Landscape Storage Box (Sits on Toprail)
  • SA - 5200# Idler Axle w/ 225/15 Tire on 6H Wheel (2990 GVWR)
  • Other Options Available
  • No Higher Side Options Available
