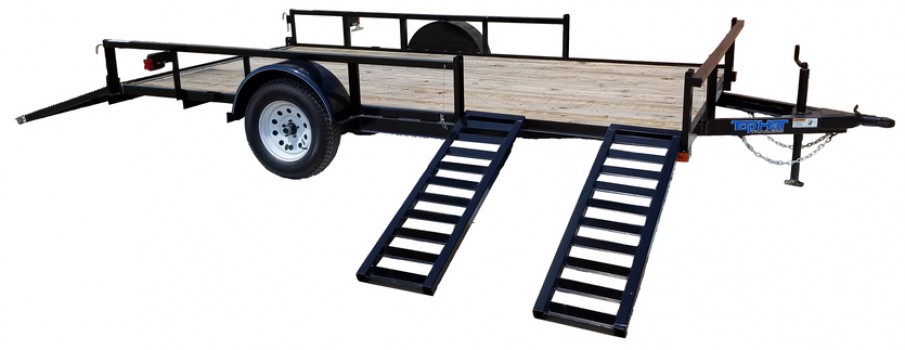

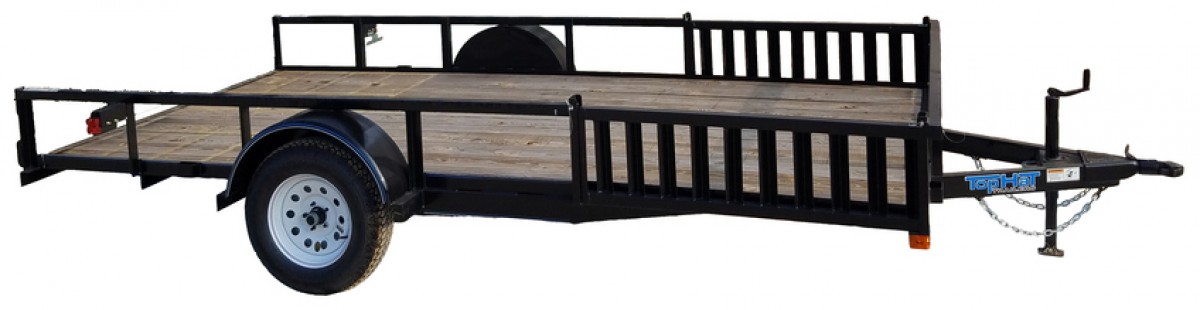

QUAD HAULER
Model
Axle Description
Tire Size
GAWR
GVWR
QUAD HAULER
12x83" QH
3500#
Dexter
ST205/15 LRC
Radial
2990#
2990#
14x83" QH
EZ Lube - 1/2 Cambered
Standard Equipment
Coupler: 2" Forged A-Frame
Jack: 2000# Set Back
Fenders: 9x32 Rolled
Floor: 2" Treated Pine
Stake Pockets
Ramps: 4 1/2' Carries as Part of Toprail
Square Back w/Board Bracket
Spare Rack
LED Lights
Colors: Refer to Chart
Frame Structure
Frame: 3x2x3/16
Toprail: 2" Square Tube
Crossmembers: 3x2x3/16
Tongue: 4" Channel Wrap
Uprights: 2x2x3/16
Options
Electric Brake SA w/Break Away & 7W Plug
Flush Mount LED Lights
Spare Rack
Fold Up Jack
HD Diamond Plate Fender
(Double Broke Single Axle)
Spare ST205/15 LRC on 5-Hole
Radial

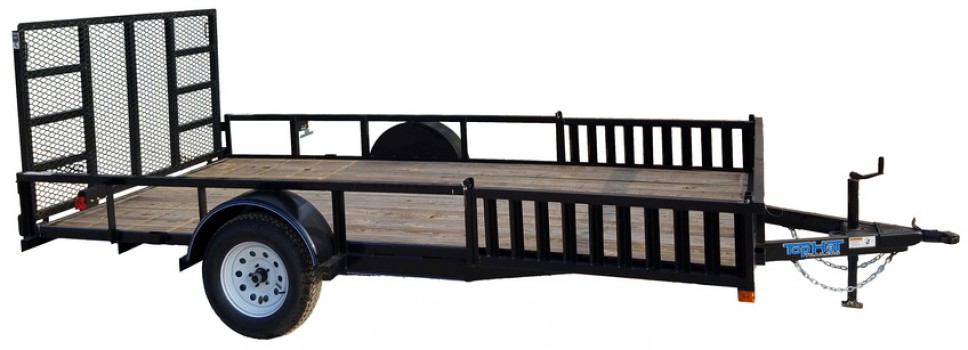

48" Lay-N-Tailgate
(Accepts Spring Assist)
Spring Assist
(Per Spring)
SA-5200# Idler Axle w/ 225/15 Tire on 6H Wheel
(2990 GVWR)
Other Options Available
