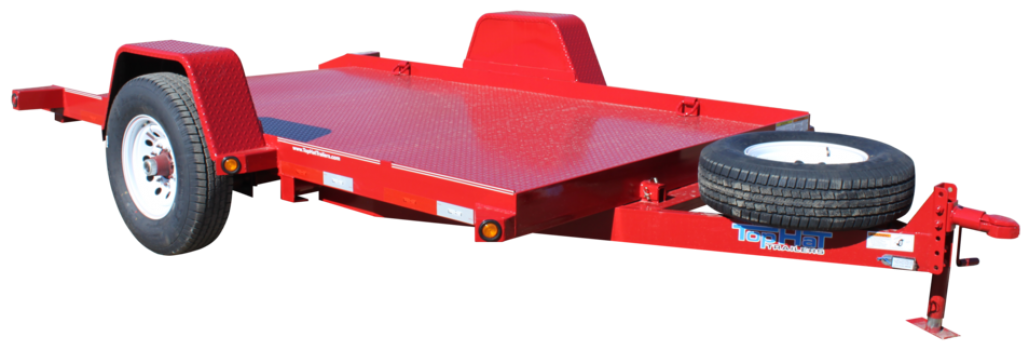

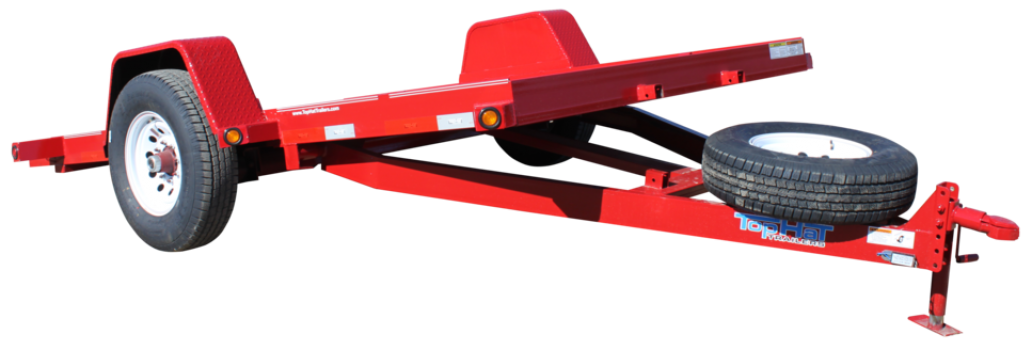

SA EQUIPMENT TILT



Model Axle Description Tire Size GAWR GVWR
SA EQUIPMENT TILT
12x80" SAET 50 5200# Dexter ST225/75R/15 LRD 5000# 5000#
  1 - Electric Brake Nev-R-Adjust
  EZ Lube - 1/2 Cambered

12x80" SAET 70 7000# Dexter ST235/80R/16 LRE 7000# 7000#
  1 - Electric Brake Nev-R-Adjust
  E-Z Lube - 1/2 Cambered

  • Coupler: 2 5/16" Forged Adjustable 5 Position
  • Jack: 2000# Fold Up
  • Fenders: HD Diamond Plate  (Double Broke Single Axle)
  • Floor: Diamond Plate Steel
  • Spare Rack
  • 4 D-Rings
  • Torsion Axle w/4" Drop
  • Brake: Electric Nev-R-Adjust
  • Flush Mount LED Lights
  • Colors: Refer to Chart
  • Frame: 5x3x1/4 on SAET 50
  • Frame: 6x4x5/16 on SAET 60
  • Toprail: NA
  • Crossmembers: 2x2x1/4
  • Tongue: 5" Channel
  • Spare ST225/15 Radial LRD on 6-Hole
  • Spare ST235/80R/16 LRE on 8-Hole
  • Weld-On D-Rings 5/8" (Priced Per D-Ring)
  • Other Options Available
