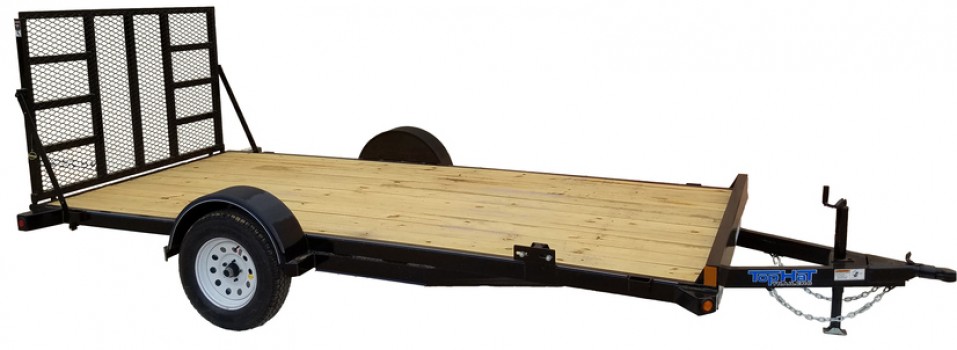

UTILITY TOY CARRIER



Model Axle Description Tire Size GAWR GVWR
UTILITY TOY CARRIER
10x60" UTC 3500# Dexter ST205/15 LRC Radial 2990# 2990#
12x77" UTC EZ Lube - 1/2 Cambered
14x77" UTC
12x83" UTC
14x83" UTC
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Set Back
  • Fenders: 9x32 Rolled
  • Floor: 2" Treated Pine
  • Stake Pockets
  • Spare Rack
  • Side Steps (Diamond Plate Front Fender Steps)
  • Flush Mount LED Lights
  • 48" Tall Upright Tailgate
  • Colors: Refer to Chart
  • Frame: 4" Channel
  • Front Bumper
  • Crossmembers: 2x2x3/16
  • Tongue: 4" Channel Wrap
  • Electric Brake SA w/Break Away & 7W Plug
  • Fold Up Jack
  • HD Diamond Plate Fender  (Double Broke Single Axle)
  • Make TG 24" w/2' Dovetail (Single Axle Option Only)
  • Make TG 36" w/2' Dovetail (Single Axle Option Only)
  • Make TG or SG Bi-Fold  (Single Axle Option Only)
  • Spring Assist (Per Spring)
  • Spare ST205/15 LRC on 5-Hole Radial
  • Rub Rail w/Stake Pockets (Per Linear Ft)
  • Tread Plate Steel Floor (Per Sq Ft)
  • 2' Dovetail  (Treadplate)
  • A-Frame Tapered Toolbox  (Small - Fits in Tongue)
  • SA - 5200# Idler Axle w/ 225/15 Tire on 6H Wheel (2990 GVWR)
  • Other Options Available
