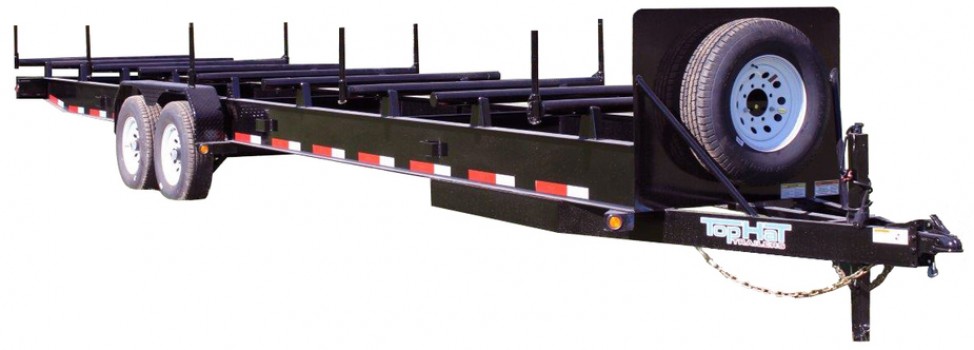

PIPE HAULER 14K and PIPE HAULER GOOSENECK 14K



Model Axle Description Tire Size GAWR GVWR
PIPE HAULER 14K
24x72" PH 14K 2 - 7000# Dexter ST235/16R LRE 7000# 14000#
28x72" PH 14K 2 - Electric Brakes Nev-R-Adjust
32x72" PH 14K E-Z Lube - 1/2 Cambered
36x72" PH 14K
40x72" PH 14K

PIPE HAULER GOOSENECK 14K
24x72" PHGN 14K 2 - 7000# Dexter ST235/16R LRE 7000# 14000#
28x72" PHGN 14K 2 - Electric Brakes Nev-R-Adjust
32x72" PHGN 14K E-Z Lube - 1/2 Cambered
36x72" PHGN 14K
40x72" PHGN 14K
  • Coupler: 2 5/16" Forged Adjustable 5/Position
  • Jack: 7000# Drop Leg
  • Gooseneck Jack: 10000# Drop Leg
  • Fenders: HD Diamond Plate Straight
  • DOT Reflective Tape
  • Brake: Electric All Wheel
  • Break Away Unit w/Charger
  • 3 - Stationary Ratchet Winches w/Straps on 32'
  • 4 - Stationary Ratchet Winches w/Straps on 36' & 40'
  • Expanded Metal Tray At Front
  • Expanded Metal Tray Over Axles
  • Headache Rack/Bulkhead: Solid 1/4" Plate Steel
  • Spare Rack on Bulkhead
  • Winch Bar
  • Colors: Black or Standard Red
  • Frame: 12"x16# I-Beam, 19# on 36' & 40'
  • Crossmembers: 5" Channel
  • Tongue: 6" Channel Wrap
  • Gooseneck: 12"x16# I-Beam
  • Material Supports: 3" Pipe x 6' Long
  • Removable Pipe Stakes
  • 10000# Drop Leg  (PH Only)
  • Dual 10000# Drop Leg Jacks  (PHGN Only)
  • Toolbox Between GN Risers (Requires Dual Jacks)
  • 10" Channel Fenders
  • Extra Ratchet Winches w/Straps (Each)
  • 6" Channel Trough Down Center
  • 8' Wide  (Priced Per Linear Ft.)
  • Spare ST235/80R/16 LRE on 8-Hole
  • 6000# Axles  (De-rates to 12000# GVWR)
