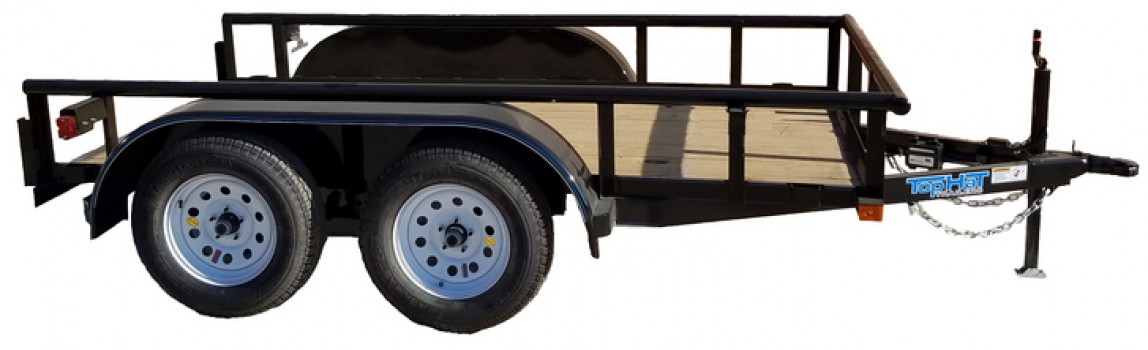

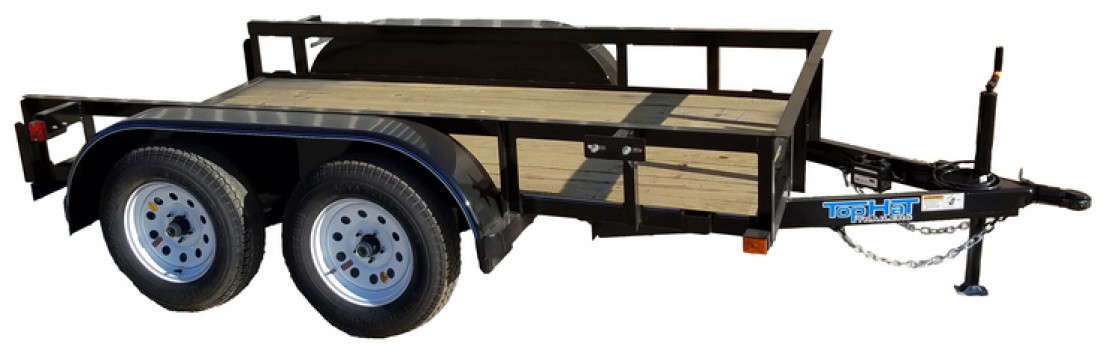

5 WIDE PIPE / FLATBED

Product Image 0
Product Image 1
Product Preview 0
Product Preview 1

  • Coupler: 2" Forged A-Frame
  • Jack: 2000#
  • Fenders: 9x72 Rolled Straight
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • LED Lights
  • Colors: Refer to Chart
  • Frame: 3x2x3/16 on 5WP
  • Frame: 5x3x1/4 on 5WFB
  • Toprail: 5WP is 2 3/8" Pipe
  • Toprail: Optional Front Bump Rail 5WFB
  • Crossmembers: 3x2x3/16
  • Tongue: 4" Channel (Wrap on 5WP & 5WFB)
  • Uprights: 2x2x3/16
  • Square Back w/ Board Bracket
  • Delete Brake Axle
  • Electric Brake  (2nd Axle)
  • Flush Mount LED Lights
  • Set Back Jack
  • Spare Rack
  • Fold Up Jack
  • 7000# Jack
  • Teardrop Fenders
  • Spare ST205/15 LRC on 5-Hole Radial
  • HD Diamond Plate Fender Straight (14ga. No Drop)
  • HD 9990# GVWR (Ask for full description.)
  • Flush Floor (5WFB Only)
  • Front Bump Rail: 2" Square Tube (5WFB Only)
  • Tread Plate Floor (w/Flush Floor Option - Per Sq Ft)
  • Tailgate Options Available
  • Spring Assist (Per Spring)
  • Other Options Available




  • NTEA Member
  • NAT Dealer Assoc
  • NAT Manu
  • Dexter Axle
  • Valspar
  • Premium Supply
