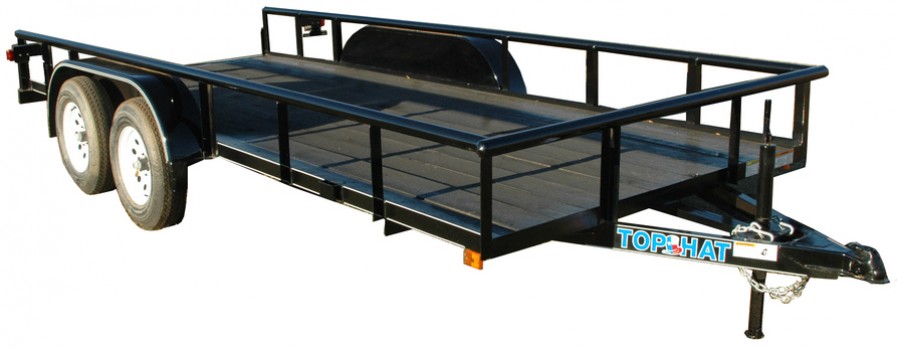

ECONO PIPE UTILITY



Model Axle Description Tire Size GAWR GVWR
ECONO PIPE UTILITY
10x77" EP 2 - 3500# Dexter ST205/15 LRC Radial 3500# 6000#
12x77" EP 1 - Electric Brake Nev-R-Adjust   With "Delete Brake" Option
14x77" EP EZ Lube - 1/2 Cambered   2950# 4490#
16x77" EP
18x77" EP
  • Coupler: 2" Forged A-Frame
  • Jack: 2000#
  • Fenders: 9x72 Rolled Straight
  • Floor: 2" Treated Pine
  • Brake: Electric Nev-R-Adjust 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • Colors: Refer to Chart
  • Frame: 3x2x3/16
  • Toprail: 2 3/8" Pipe
  • Crossmembers: 3x2x3/16
  • Tongue: 4" Channel
  • Uprights: 2x2x3/16
  • Square Back w/Board Bracket
  • Delete Brake Axle
  • Electric Brake
  • Bolt-on LED Lights
  • Flush Mount LED Lights
  • Wrap Tongue
  • Set Back Jack
  • Fold Up Jack
  • 7000# Jack
  • Teardrop Fenders
  • HD Diamond Plate Fender Straight
  • 83" Box
  • Spare Rack
  • Spare ST205/15 LRC on 5-Hole Radial
  • 4' Slide-n-Ramps
  • Tailgate Options Available
  • Sidegate Options Available
  • Spring Assist
  • Other Options Available
