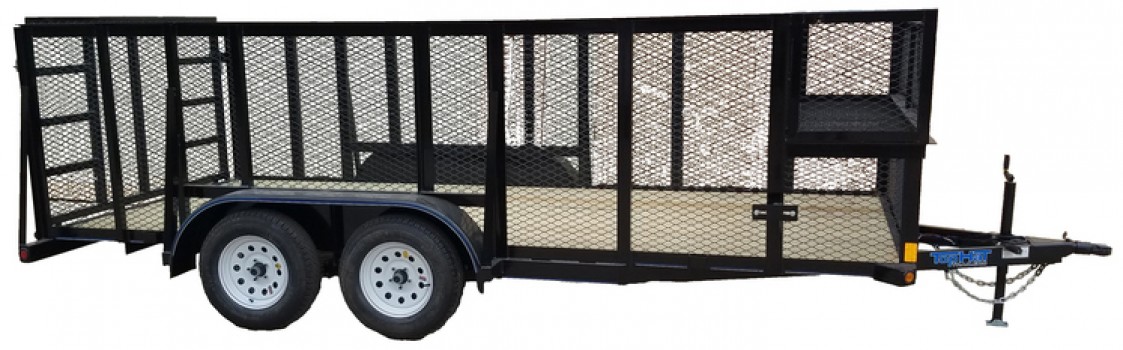

LANDSCAPE



Model Axle Description Tire Size GAWR GVWR
LANDSCAPE
12x83" LS 2 - 3500# Dexter ST205/15 LRC Radial 3500# 7000#
14x83" LS 1 - Electric Brake Nev-R-Adjust   With "Delete Brake" Option
16x83" LS EZ Lube - 1/2 Cambered   2950# 4490#
18x83" LS
20x83" LS
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Set Back
  • Fenders: 9x72 Rolled Straight
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • 48" Sides Enclosed w/Expanded Metal
  • Lockable Expanded Metal Box 2x2x"Width of Trailer" at Front
  • 48" Tall Tailgate
  • Spare Rack
  • Flush Mount LED Lights
  • Colors: Refer to Chart
  • Frame: 3x2x3/16
  • Toprail: 3x2x3/16
  • Crossmembers: 3x2x3/16
  • Tongue: 4" Channel Wrap
  • Uprights: 3x2x3/16
  • Delete Brake Axle
  • Electric Brake
  • 7000# Drop Leg Jack
  • Teardrop Fenders
  • Spare ST205/15 LRC on 5-Hole Radial
  • HD Diamond Plate Fender Straight
  • Spring Assist
  • Weed Eater Rack
  • Water Cooler Rack
  • Shovel & Rake Rack
  • HD 9990# GVWR
  • Remove Landscape Storage Box
  • Other Options Available
