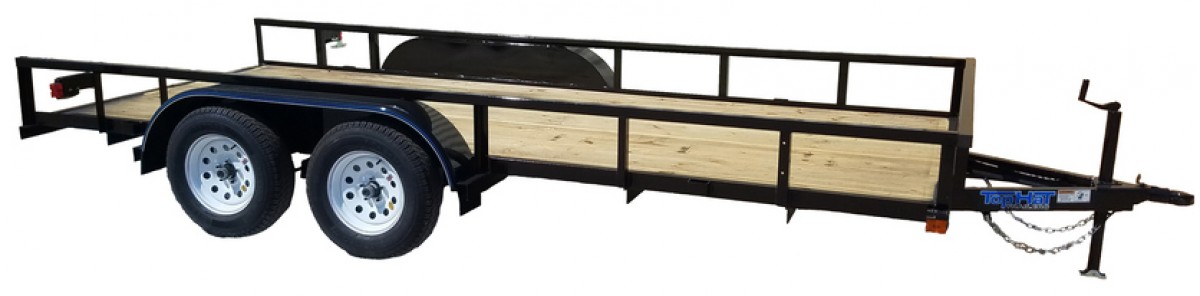

LITE DUTY UTILITY



Model Axle Description Tire Size GAWR GVWR
LITE DUTY UTILITY
12x77" LDX (No Brakes) 2 - 3500# Dexter ST205/15 LRC Radial 2950# 4490#
14x77" LDX (No Brakes) *No Brakes
16x77" LDX (No Brakes) EZ Lube - 1/2 Cambered

12x77" LDT (w/Brakes) 2 - 3500# Dexter ST205/15 LRC Radial 3500# 5000#
14x77" LDT (w/Brakes) 1 - Electric Brake Nev-R-Adjust
16x77" LDT (w/Brakes) EZ Lube - 1/2 Cambered
  • Coupler: 2" Forged A-Frame
  • Jack: 2000#
  • Fenders: 9x72 Rolled Straight
  • Floor: 2" Treated Pine
  • Break Away Unit w/Charger on LDT Model
  • Stake Pockets
  • Pin Stripe on Fender Only
  • LED Lights
  • Color: Black Only
  • Frame: 3x2x3/16
  • Toprail: 2" 14 ga. Square Tube
  • Crossmembers: 3x2x3/16
  • Tongue: 4" Channel
  • Uprights: 2x2x1/8
  • Square Cut Fender Braces Not Capped
  • No Board Brackets
  • Electric Brake on LDT  (2nd Axle)
  • Wrap Tongue
  • Set Back Jack
  • Teardrop Fenders
  • Spare Rack
  • Spare ST205/15 LRC on 5-Hole Radial
  • 4' Slide-N-Ramps
  • 48"x77" TG (Lay-N or Upright)
  • 2' DT w/24" TG 77" Box
  • 2' DT w/36" TG 77" Box
  • Spring Assist (Per Spring)
  • No Other Sizes or Options Available
  • KNOW THE BRAKE LAWS IN STATES WHERE YOU ARE TOWING. SOME STATES REQUIRE BRAKES ON ALL TANDEM AXLE TRAILERS.
