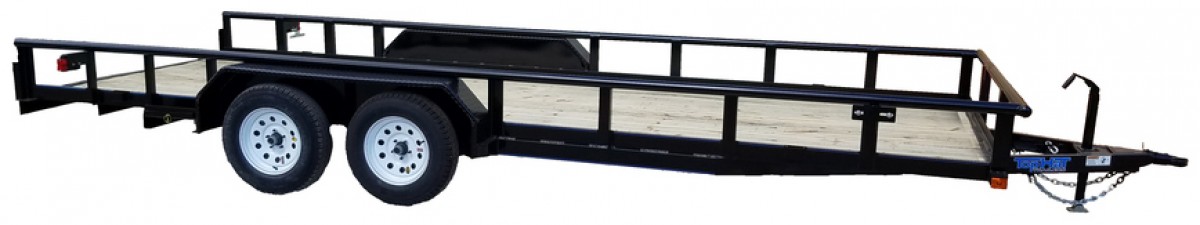

XL PIPE UTILITY



Model Axle Description Tire Size GAWR GVWR
XL PIPE UTILITY
12x83" XLP 2 - 3500# Dexter ST205/15 LRC Radial 3500# 7000#
14x83" XLP 1 - Electric Brake Nev-R-Adjust   With "Delete Brake" Option
16x83" XLP EZ Lube - 1/2 Cambered   2950# 4490#
18x83" XLP
20x83" XLP
  • Coupler: 2" Forged A-Frame
  • Jack: 2000# Set Back
  • Fenders: HD Diamond Plate Straight
  • Floor: 2" Treated Pine
  • Brake: Electric 2 Wheel
  • Break Away Unit w/Charger
  • Stake Pockets
  • Spare Rack
  • LED Lights
  • Colors: Refer to Chart
  • Frame: 4x3x1/4
  • Toprail: 2 3/8" Pipe
  • Crossmembers: 3x2x3/16
  • Tongue: 4" Channel Wrap
  • Uprights: 3x2x3/16
  • Square Back w/Board Bracket
  • 77" Box
  • Delete Brake Axle
  • Electric Brake (2nd Axle)
  • 3" Pipe Toprail (Per Foot)
  • Fold Up Jack
  • 7000# Jack
  • Spare ST205/15 LRC on 5-Hole Radial
  • Upgrade to 225/15 Radial LRC (Per Tire)
  • Spare ST225/15 LRC on 5-Hole Radial
  • Gooseneck w/8" Channel Neck  (Must Purchase 5x3 Frame)
  • 4' Slide-N-Ramps
  • 5' Slide-N-Ramps (NA on 12' & 14')
  • 4 1/2' Ramps-N-Toprail (NA on Lengths Under 14')
  • Tailgate Options Available
  • Sidegate Options Available
  • Spring Assist (Per Spring)
  • Other Options Available
