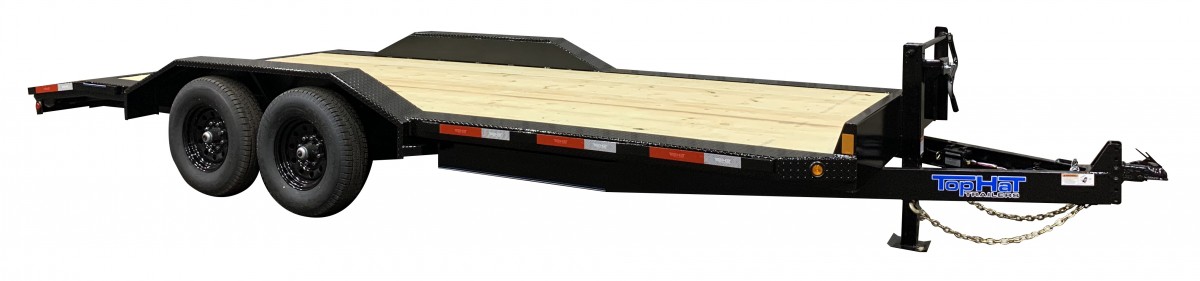

WIDE DRIVE OVER 16K
Model
Axle Description
Tire Size
GAWR
GVWR
WIDE DRIVE OVER 16K
16x102" WD16
2 - 8000#
Dexter
215/75R/17.5 LRH
8000#
17500#
18x102" WD16
2 - Electric Brakes
Nev-R-Adjust
8 Hole Black Mod
20x102" WD16
Oil Bath - 1/2 Cambered
22x102" WD16
5/8" Lug Studs
24x102" WD16
26x102" WD16
28x102" WD16
30x102" WD16
32x102" WD16
Standard Equipment
Coupler: 2 5/16" Forged Adjustable 5/Position
Jack: 10000# Drop Leg
Fenders: Smooth Drive Over w/Center Brace
(3/16")
Floor: 2" Treated Pine
Brake: Electric 4 Wheel w/Break Away Unit & Charger
Sealed Flush Mount LED Lights
Stake Pockets & Rubrail
Spare Rack
5' Slide-N-Ramps 3" Channel
(Rear)
Colors: Refer to Chart
Frame Structure
Frame: 8" Channel
Tongue: 6" Channel Thru 24'
Tongue: 8" Channel on 26-32'
Crossmembers: 3" Channel 16" OC
Front Bumper w/Side Gussets
Flush Floor w/Side Extensions
83" Between Fenders
(81" w/3 1/2" Brake Pad)
102" Overall to Outside of Extensions
2' Treadplate Dovetail
Floor to Fender Ht. 9" w/8" Frame
Options
Spare 215/75R/17.5 LRH on 8-Hole Black Mod
3 3/8" Brake Pads
(81" Width Between Fenders)
Fold Up 2K Stabalizer Jack
(Each)
Pintle Eye Adjustable 35K
Tread Plate Steel Floor
(Per Sq Ft)
Weld-On D-Rings 5/8"
(Each)
Self Cleaning Dovetail w/Jumbo Ramps
Change Length of Treadplate Dovetail to 3' or 4'
Other Options Available
